Home >> Honda >> 1986 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Complete Body & Chassis Wiring Circuit >> Carbureted Engine

Carbureted Engine

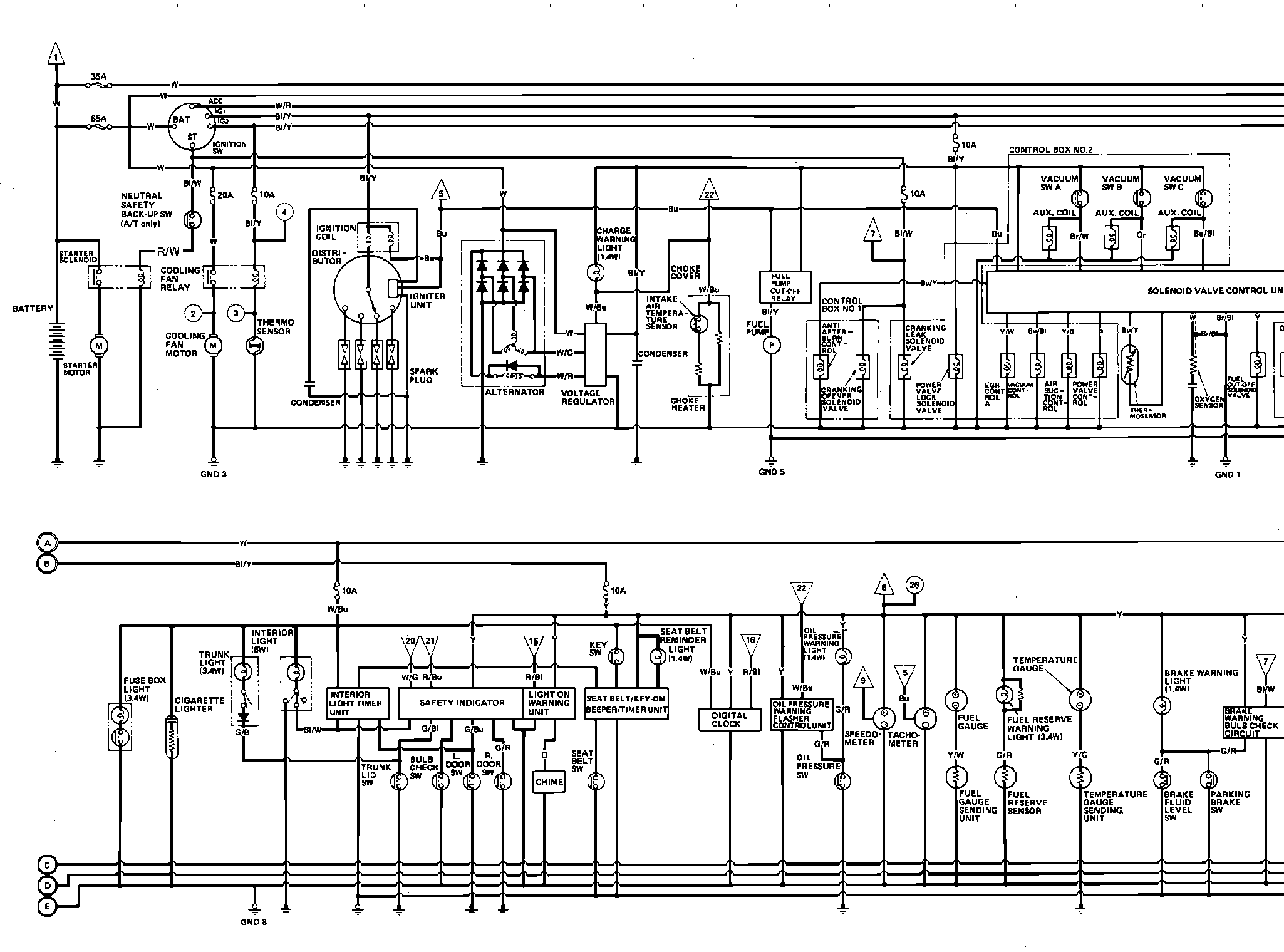

�fcgcFig. 94c Complete Body & Chassis Wiring Circuit. W/Carbureted Engine (Part 3 of 3):
