Automatic Transmission

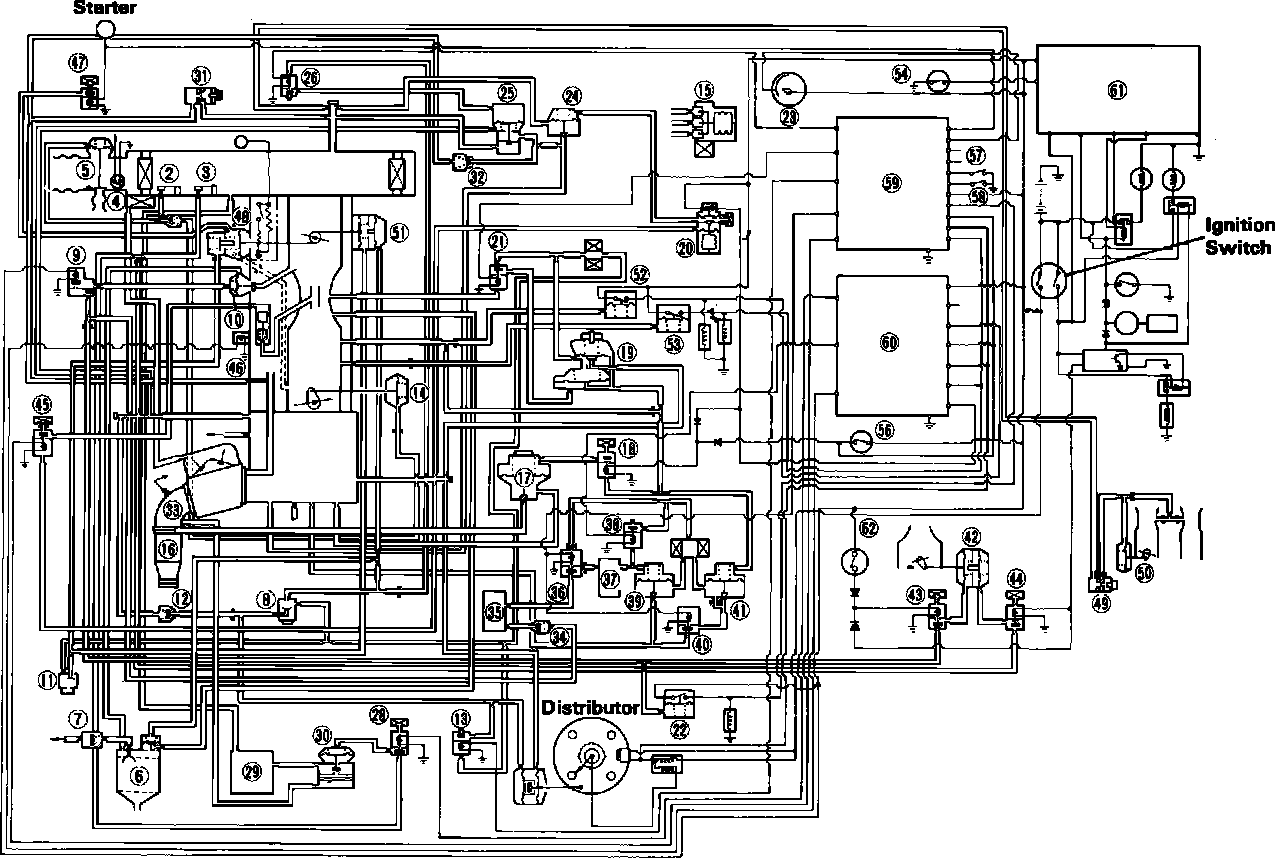

Vacuum And Electrical Schematic, With A/T:

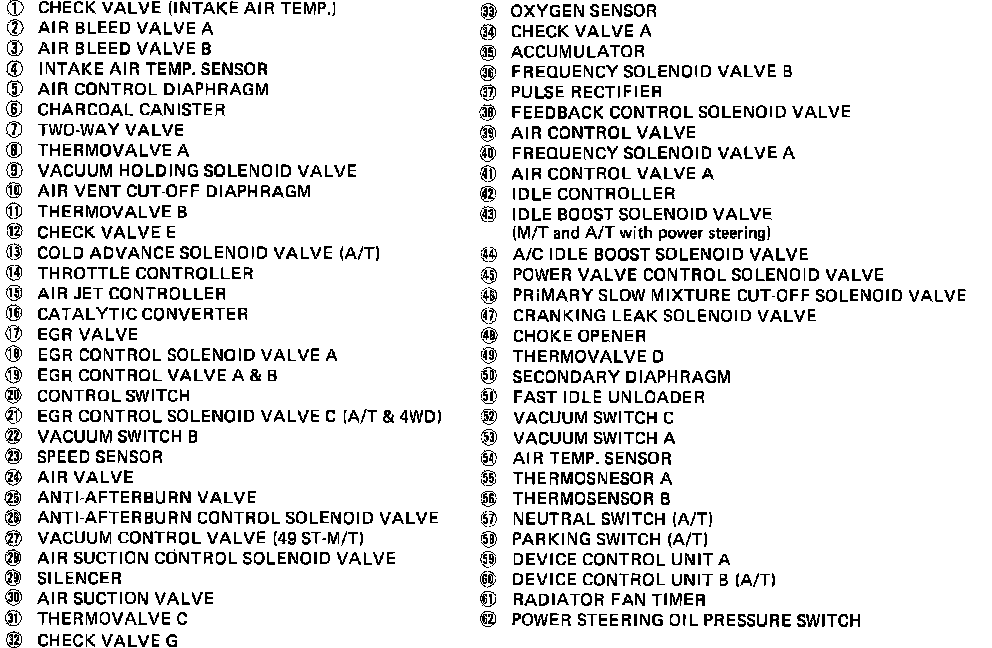

Vacuum And Electrical Schematic Legend:
