Honda
>>
1986
>>
CRX L4-1488cc 1.5L SOHC (EW3) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Diagrams
>>
HF (California)
HF (California)

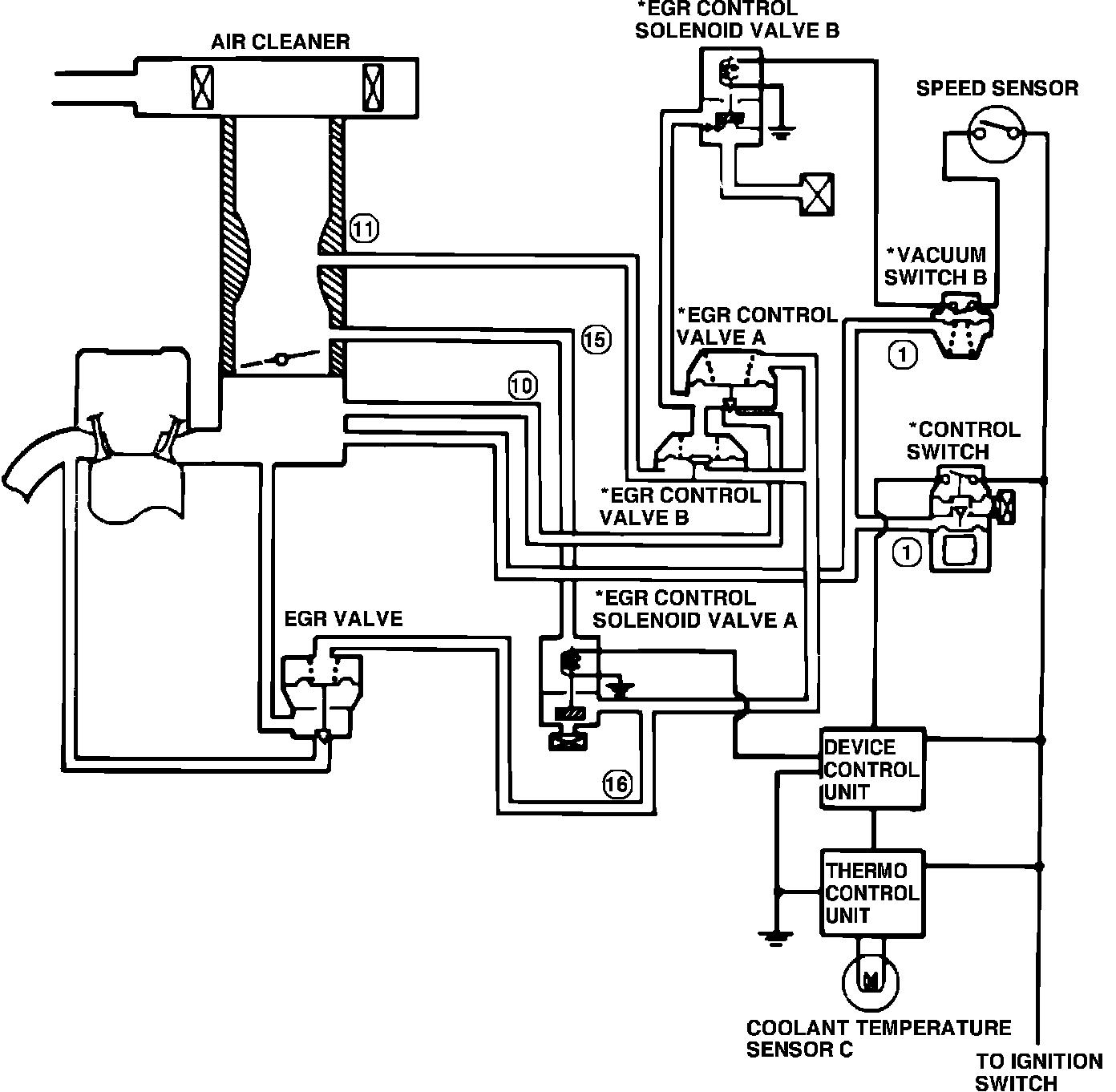

Fig. 56 EGR System.:
