EGR Control System Schematic (HF Federal/Hi Alt)
EGR Control System Schematic (HF Federal/Hi Alt)

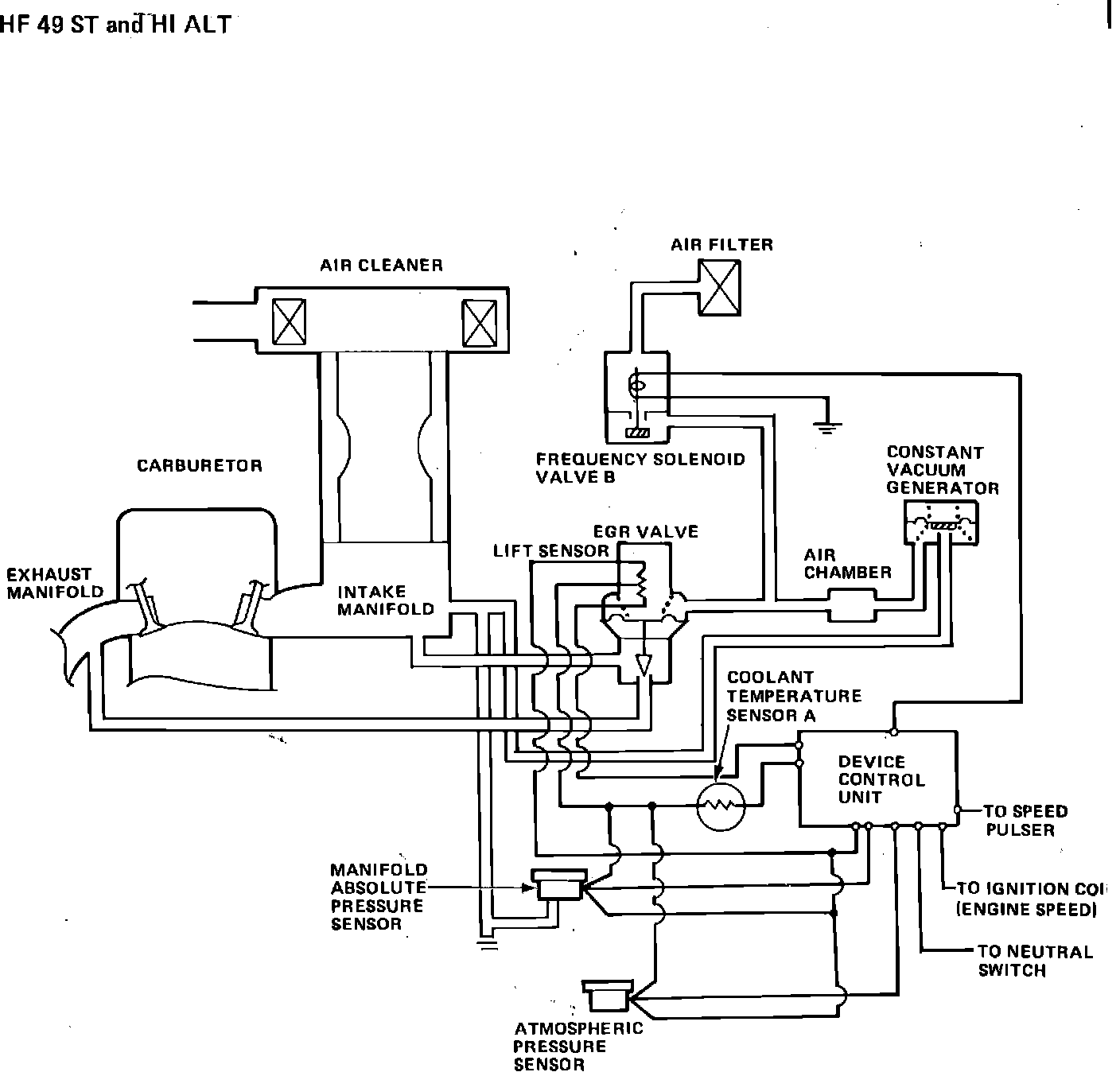

Fig. 363 EGR Control System Schematic (HF Federal/HI Alt):
