Automatic Transmission (Except HF)
Automatic Transmission (Except HF)

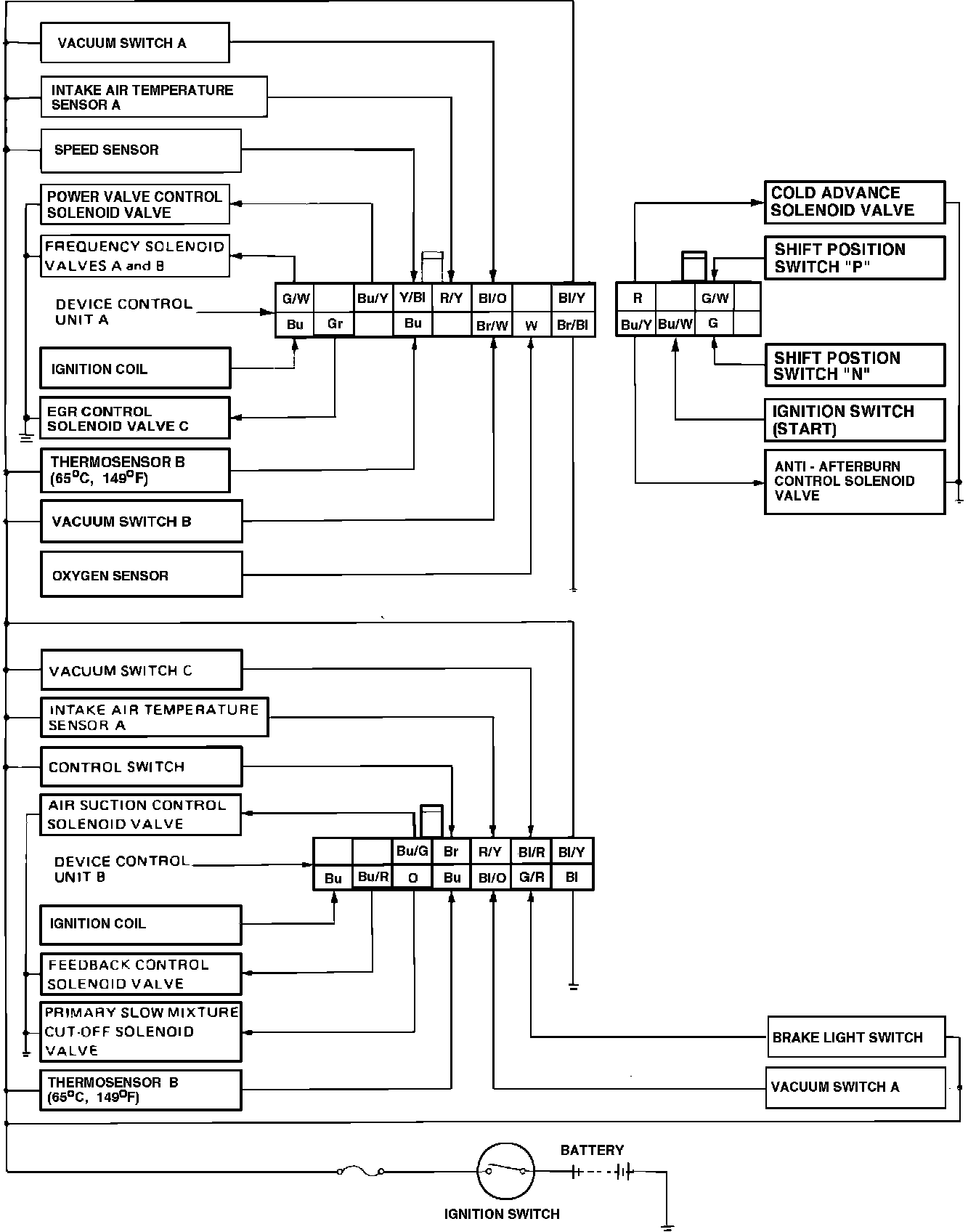

Fig. 52 Control Unit Connector Wiring Schematic.:
