DX

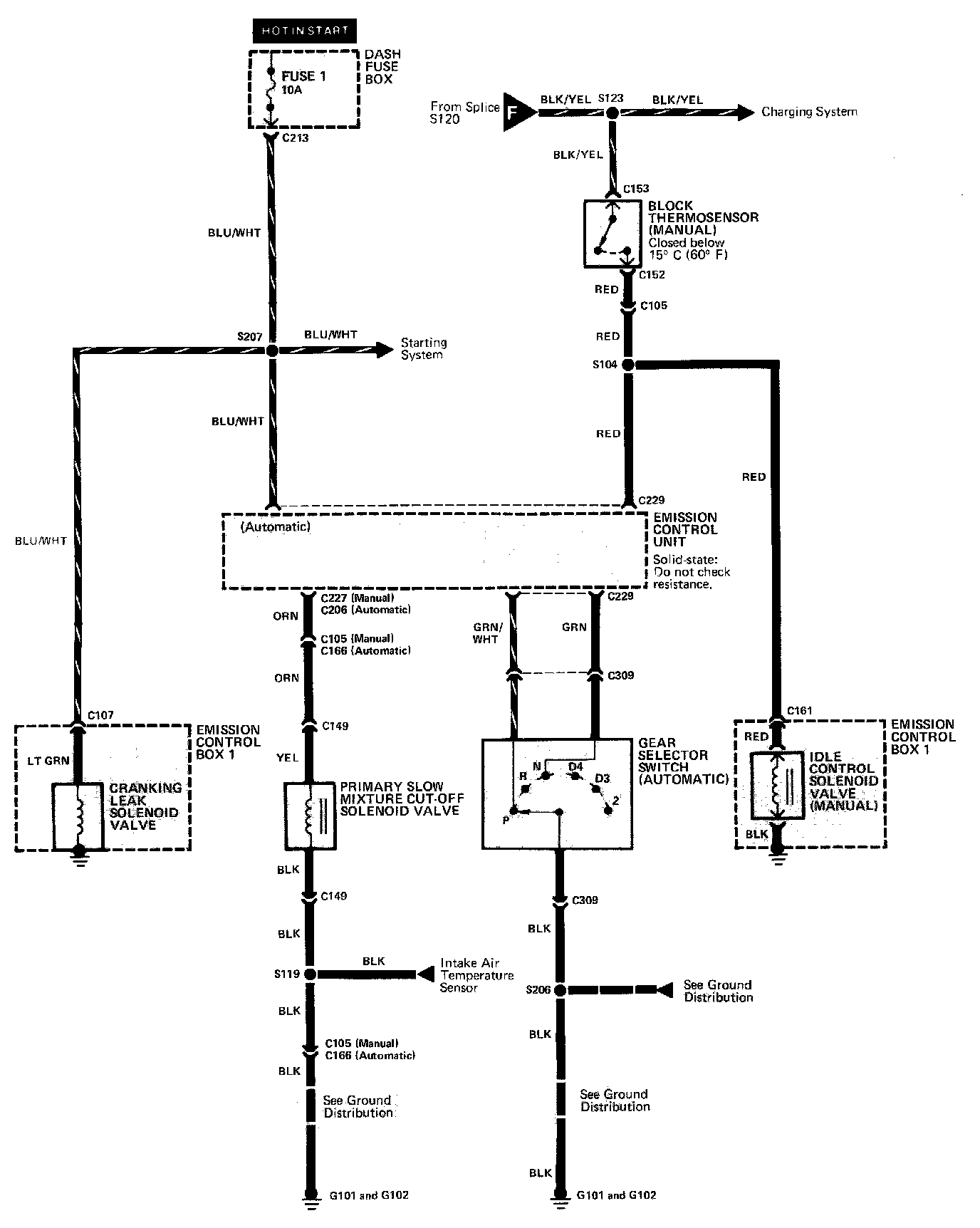

Emission Controls (DX) - Part 1 Of 5:

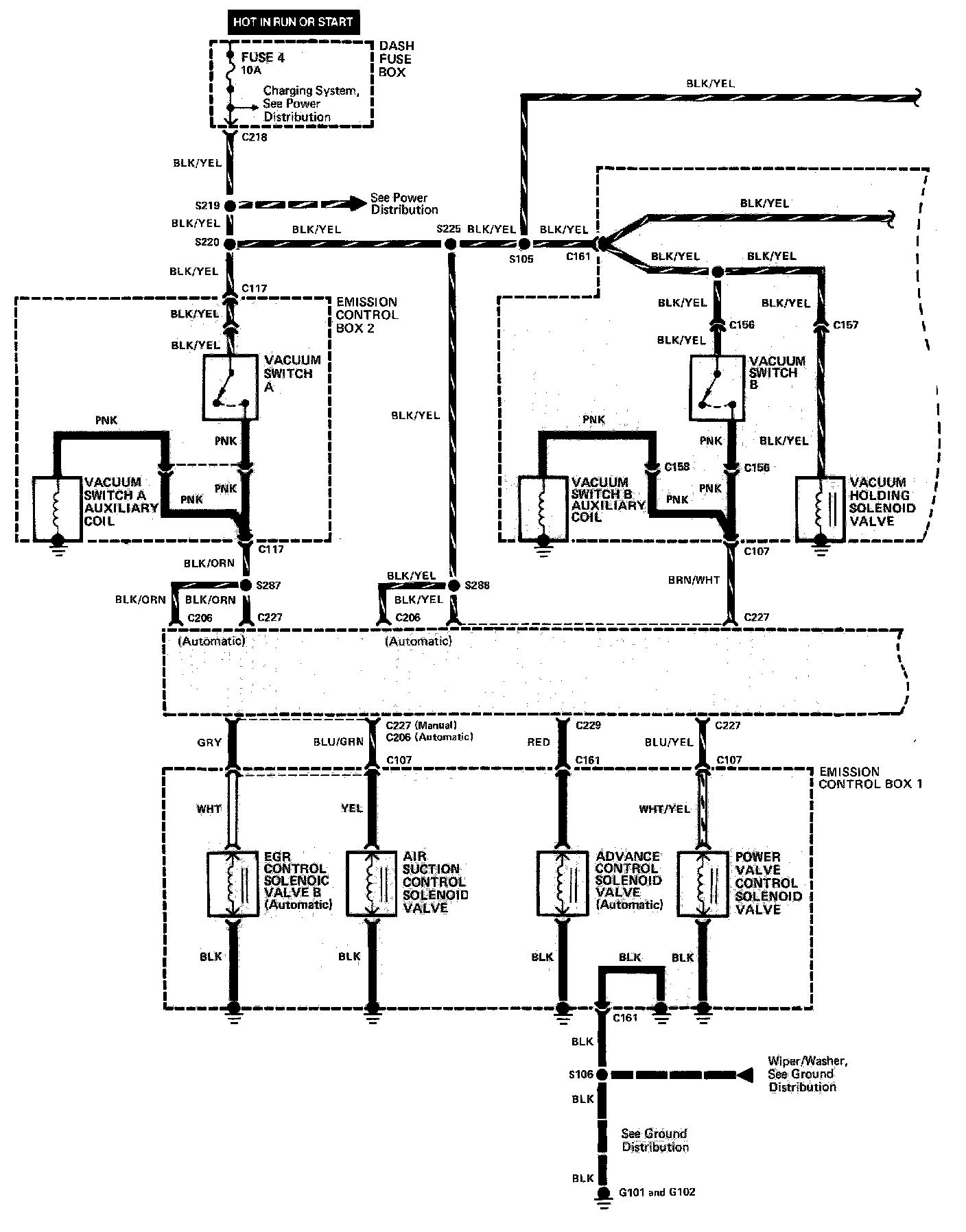

Emission Controls (DX) - Part 2 Of 5:

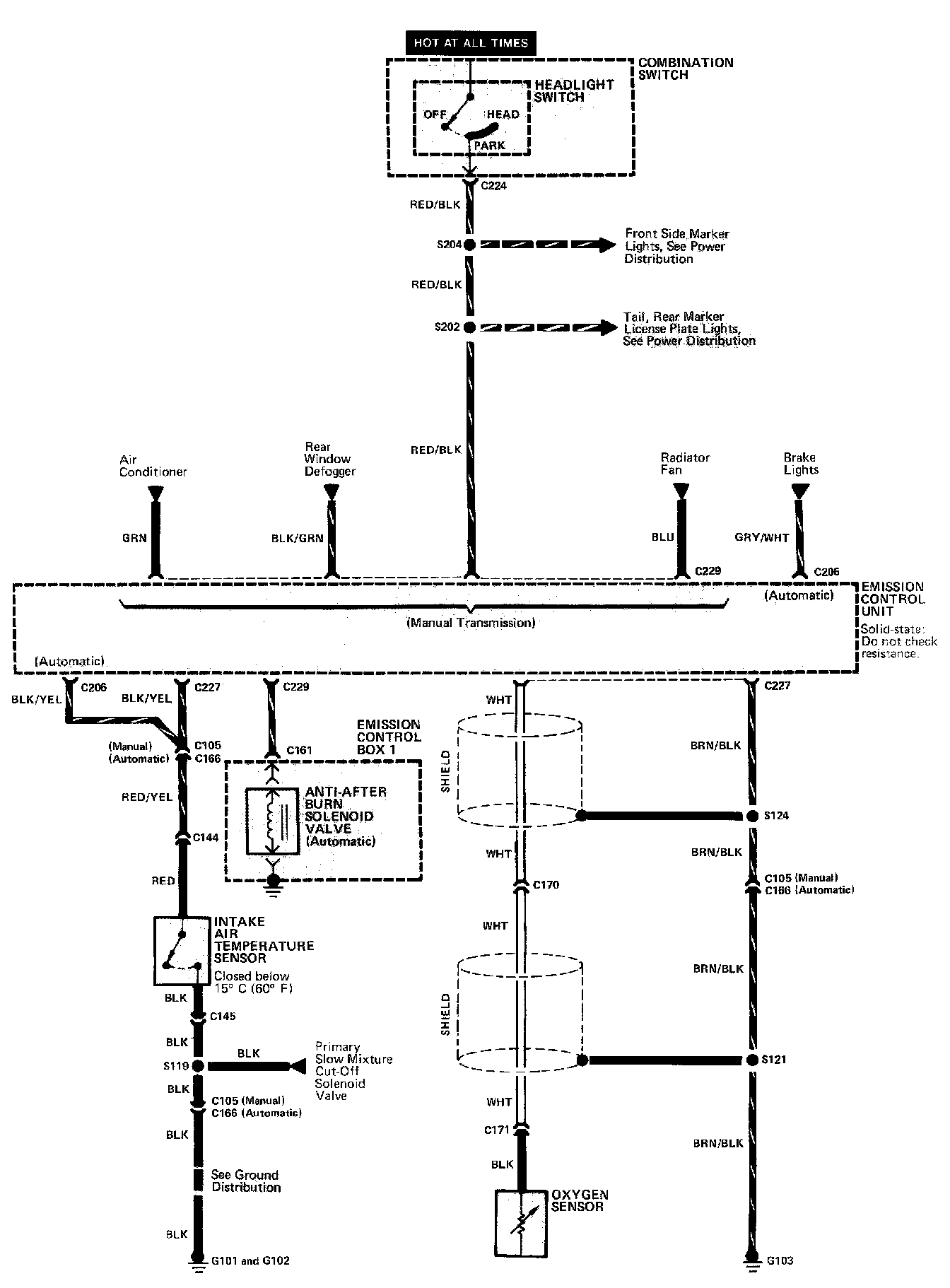

Emission Controls (DX) - Part 3 Of 5:

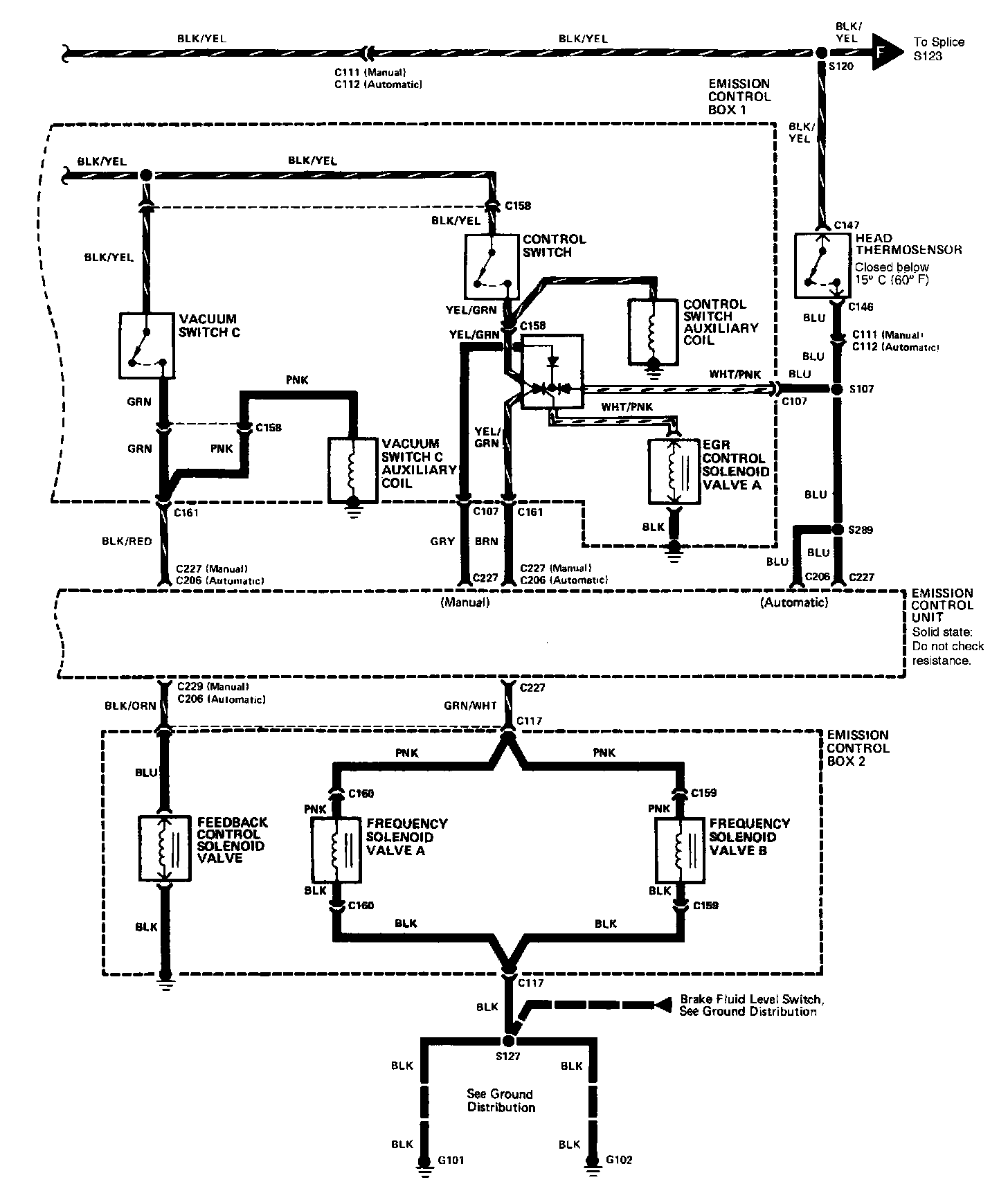

Emission Controls (DX) - Part 4 Of 5:

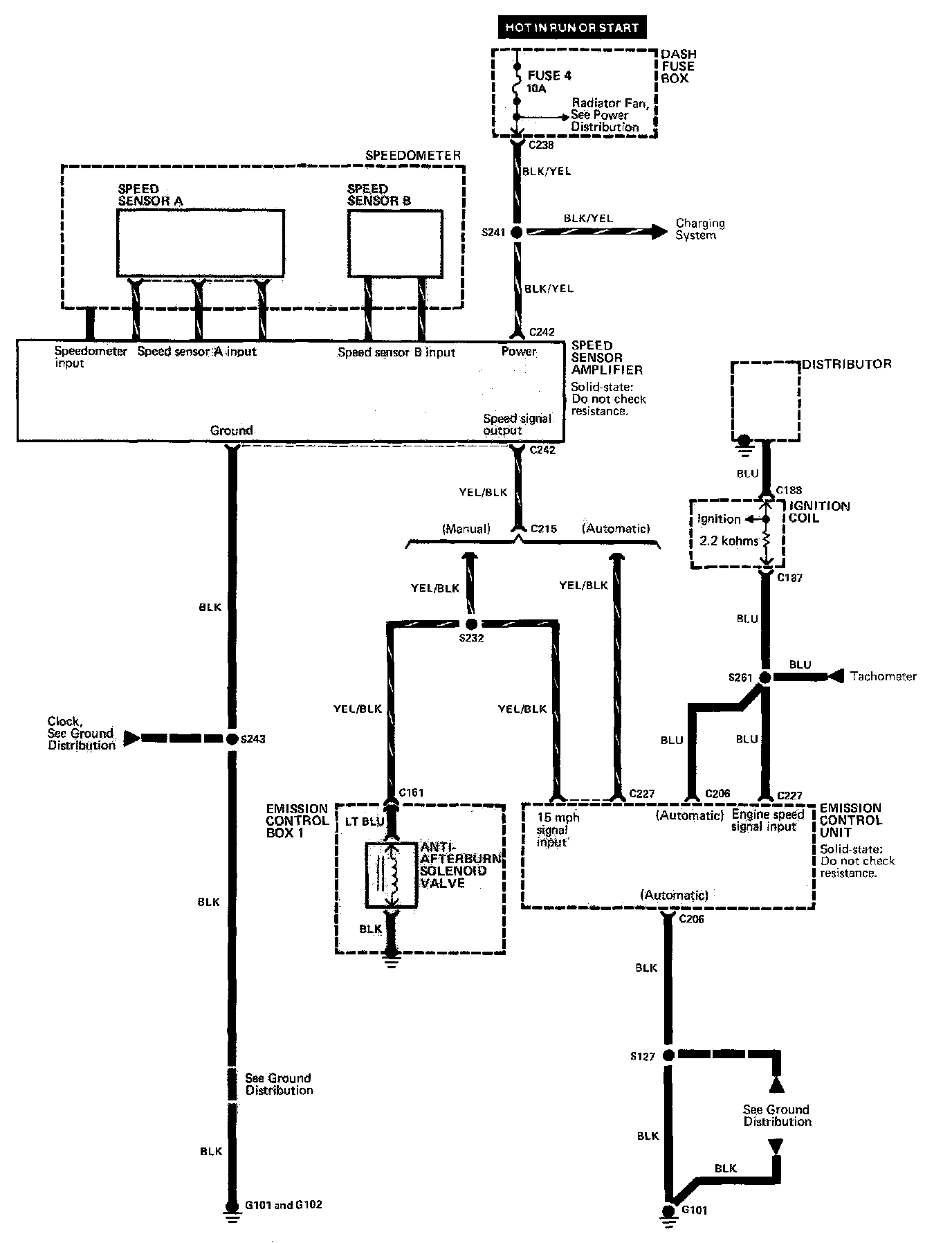

Emission Controls (DX) - Part 5 Of 5:
