Home
>>
Honda
>>
1986
>>
CRX L4-1488cc 1.5L SOHC (EW3) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Si Model
Si Model

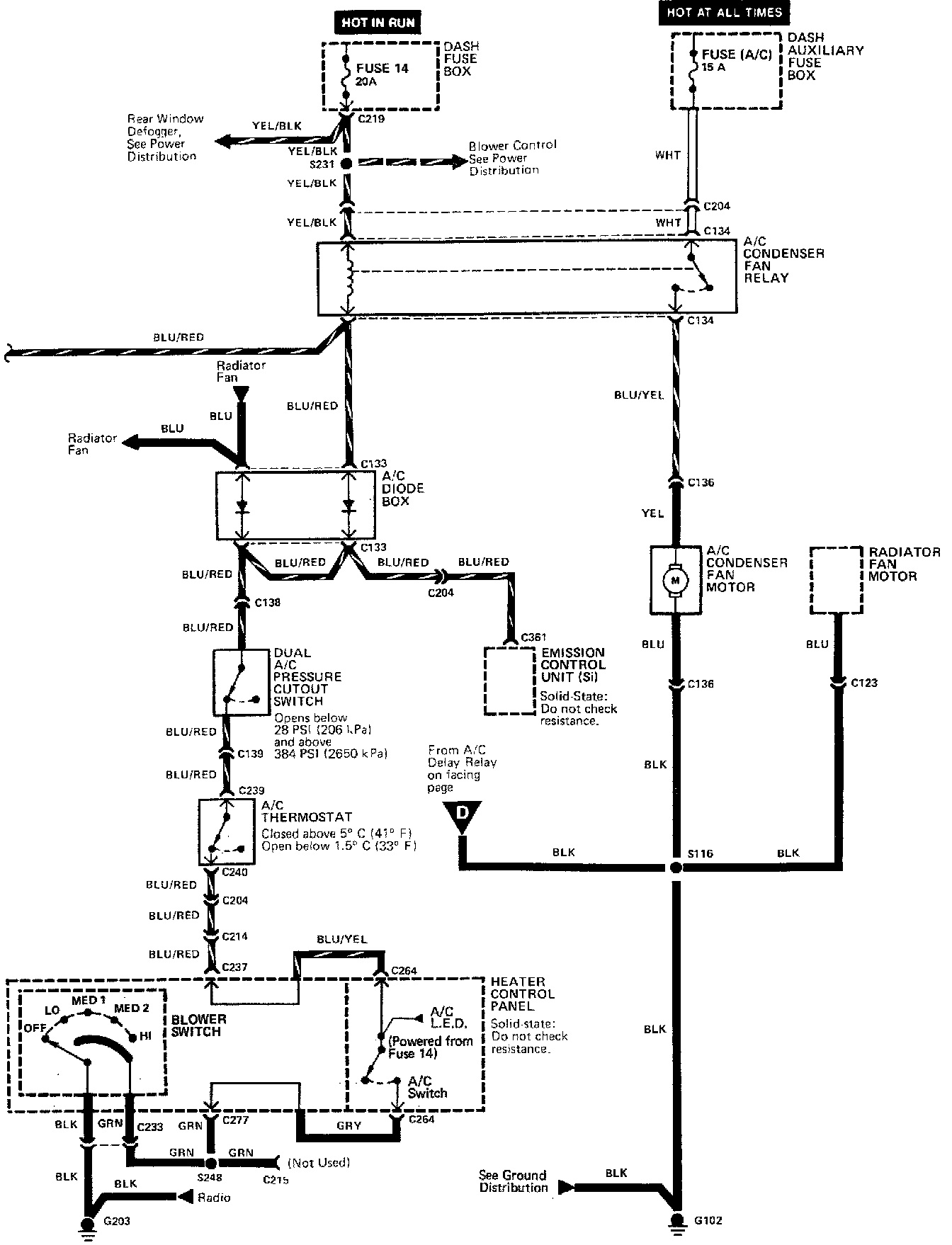

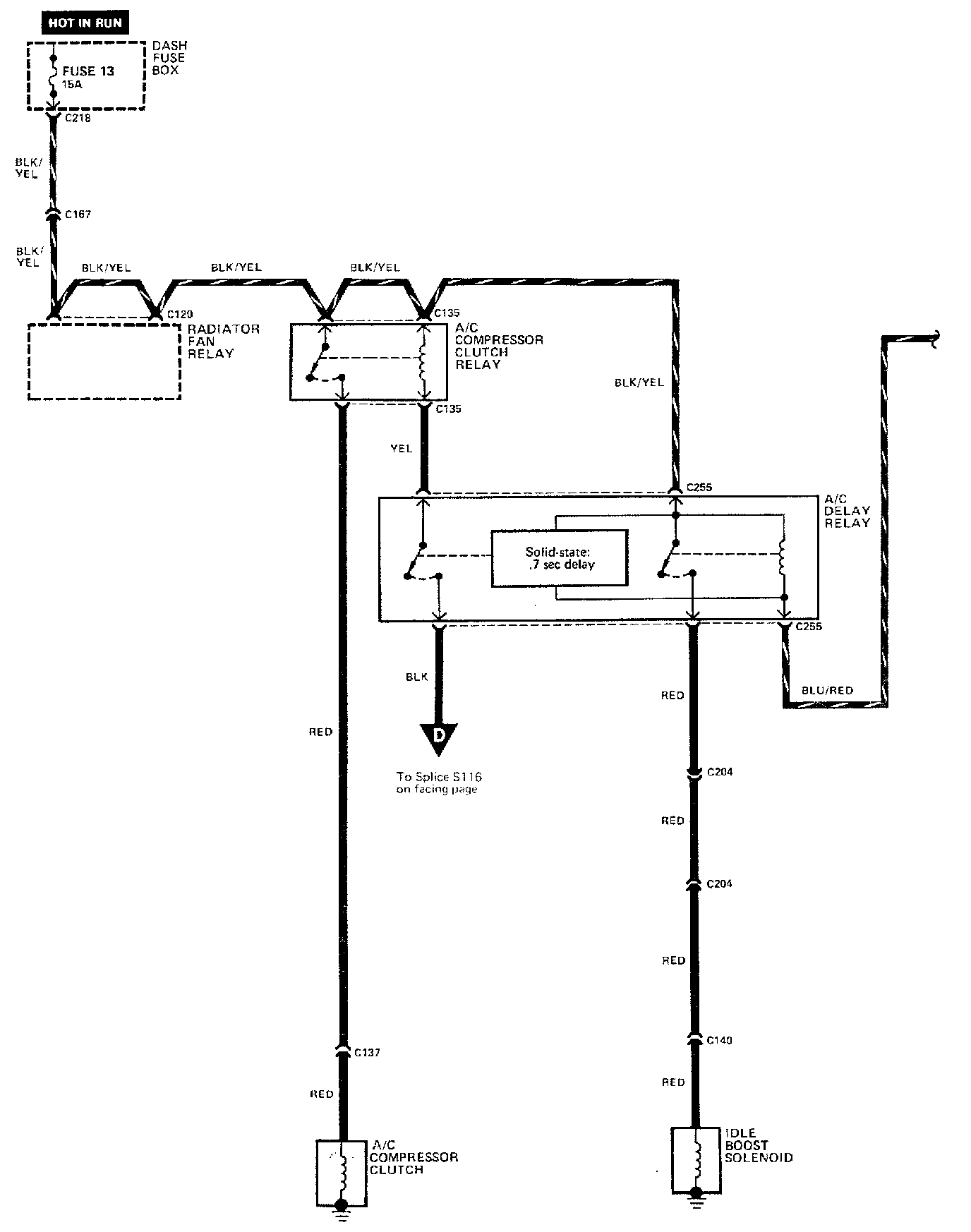

Air Conditioner (Si)
