Mirrors - Connecting Rear View Mirror Linkage

Model Applicable To File Under Bulletin No.

85-040
ACCORD '86 DX PDI
Issue Date SEPT 20, '85

Connecting Rear View Mirror Linkage During PDI


To prevent damage, 1986 Accord DX models are shipped with the adjustment linkage in their outside rear view mirrors disconnected, and a special clip installed to keep the mirrors "folded-in." You must connect the linkage and remove the retainers during the pre-delivery inspection.

NOTE: Remove the retainers carefully to prevent dislodging the mirrors' main springs. If the main springs become dislodged see "Replacing a Dislodged Main Spring."

WARRANTY CLAIM INFORMATION

None; consider these procedures part of the PDI.

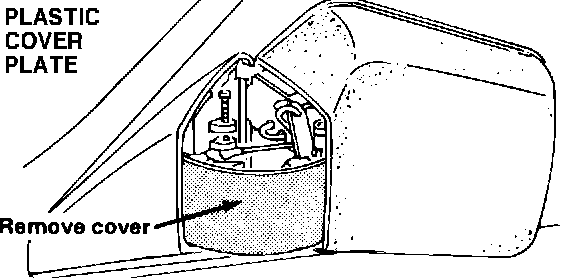

Plastic cover plate:

Mirror Adjustment - Sedan DX:

1. Remove the black plastic cover plate.

Main spring mounting post:

2. Remove the hook end of the retainer's spring from the main spring mounting post, being careful not to move the mirror.

NOTE: Moving the mirror may dislodge the main spring

Main spring:

3. Position the mirror so the end of the main spring fits into the mounting post as shown, then tighten the main spring retaining screw.

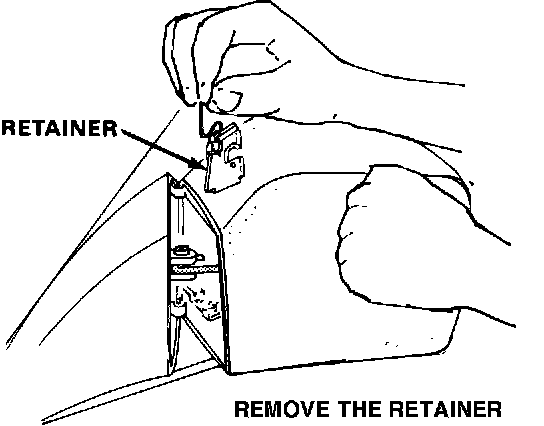

Remove the retainer:

4.. Push the mirror backward and remove the retainer.

Main spring cam plate:

Mirror Adjustment - Hatchback DX:

1. Remove the outside hook of the retaining clip from the main spring cam plate.

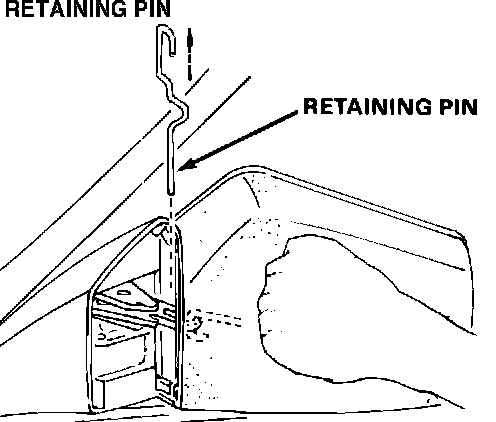

Retaining pin:

2. Push the mirror forward until the cam plate clicks into place, then push the mirror back and pull out the long retaining pin.
Replacing Dislodged Main Springs:

NOTE: It may be necessary to remove the mirror glass for access to the dislodged spring/cam plate. Do so by inserting a small screwdriver through the access hole in the bottom of the mirror housing and loosening the tension screw. Then gently pry out the edge of the glass with your fingers until it pops off the ball joint.

Replacing Dislodged Main Springs:

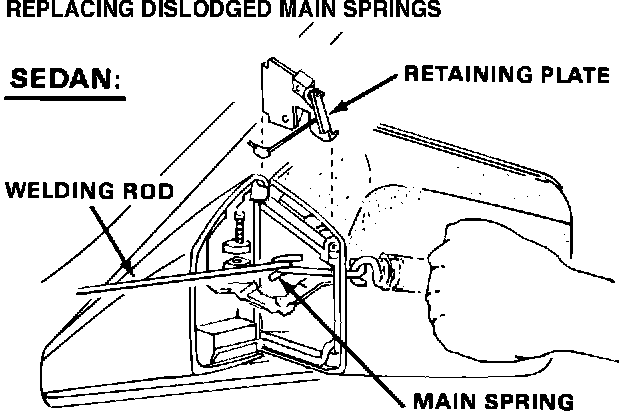

1. Use a hooked piece of welding rod to grasp the end of the main spring (Sedan) or cam plate (Hatchback). Make sure the open end of the spring or cam plate hook faces the car, as shown.

Replacing Dislodged Main Springs:

2. Have an assistant fold the mirror toward the car while you pull the main spring/cam plate toward you. Now reposition the retaining plate (Sedan) or retaining pin (Hatchback).
