Honda
>>
1986
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
Fuel Injected Engine
Fuel Injected Engine

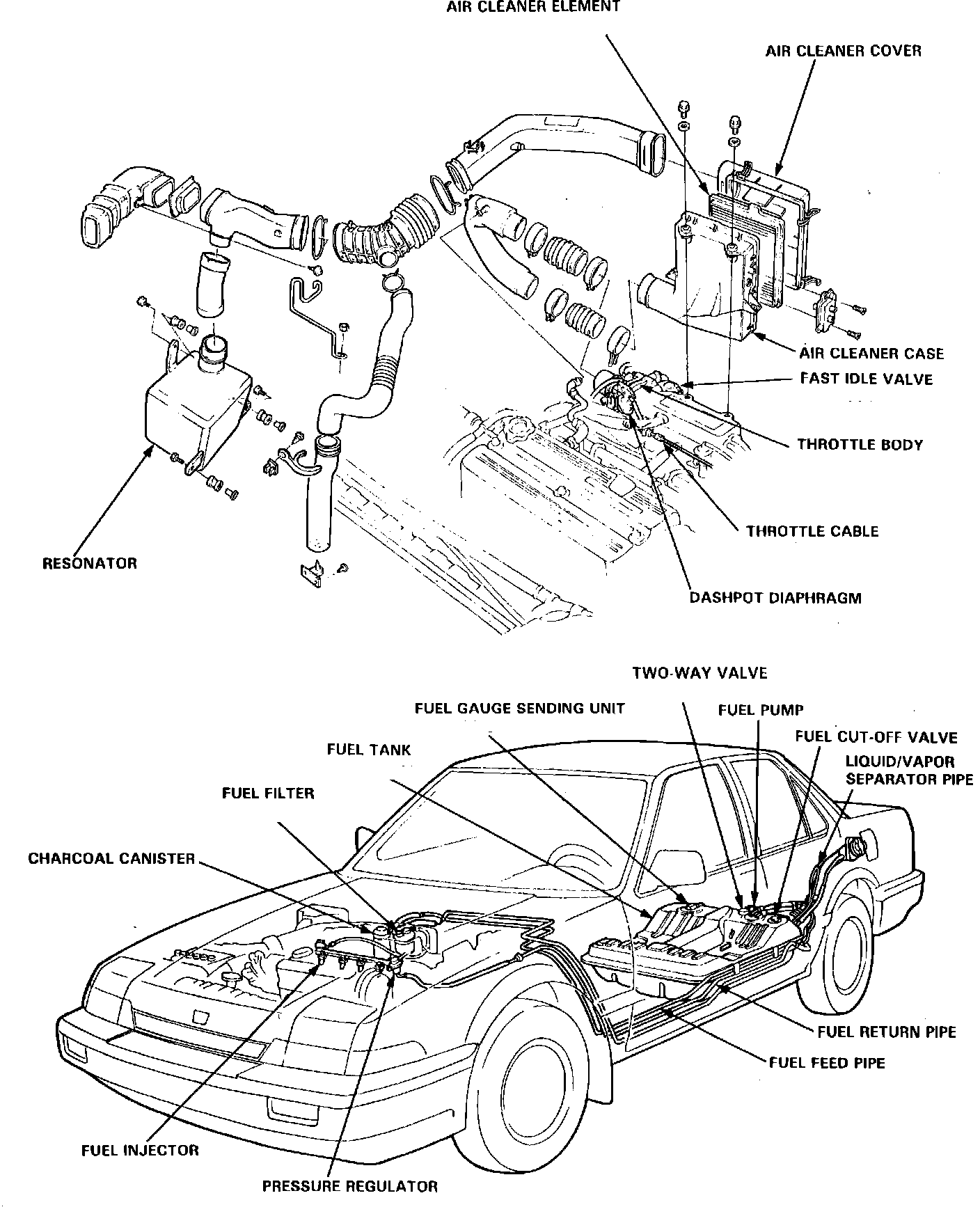

Fig. 46 Body Air/Fuel System Locations:
