Engine Electrical Wiring Circuit
Engine Electrical Wiring Circuit

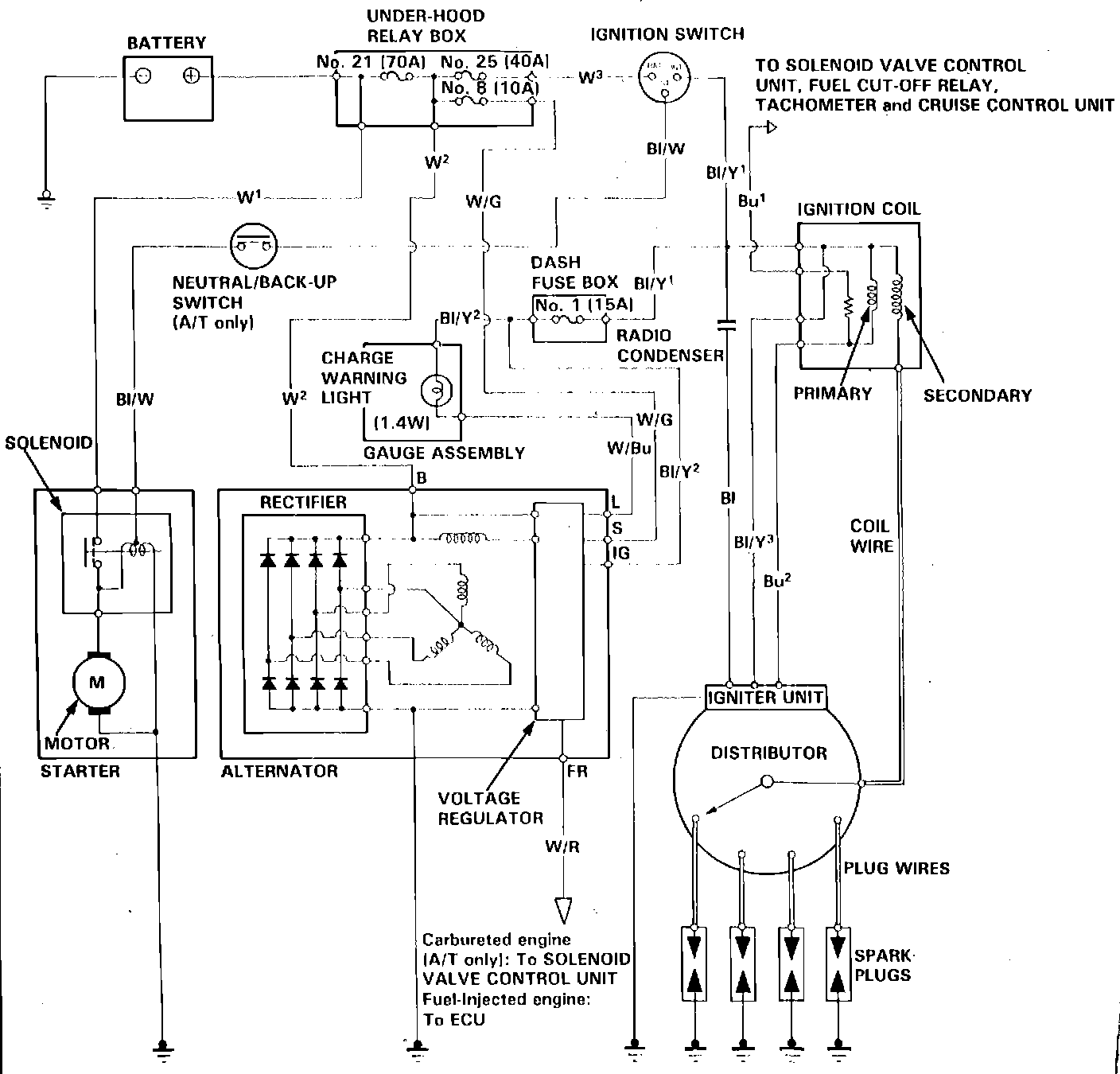

Fig. 55 Engine Electrical Wiring Diagram:
