Home
>>
Honda
>>
1986
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

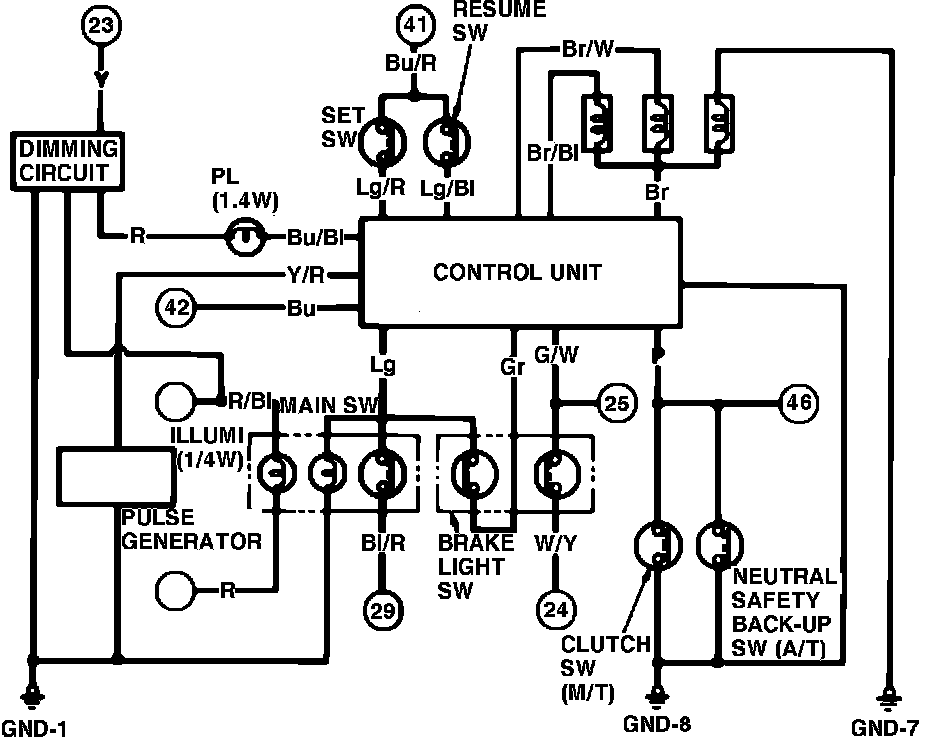

Fig. 38 Cruise Control Wiring Circuit.:
