Window - Rattle From Door Glass

Model Applicable To File Under Bulletin No.
ALL '84 85-021
CIVIC '85 1.3 up to VIN BODY
AG004377 Issue Date
'85 1.5 up to VIN
APR 19, '85
AH017094

Door Glass Run Cut on '84 and '85 Civic Hatchback


SYMPTOM

The door glass run is cut which may cause the window glass to rattle.

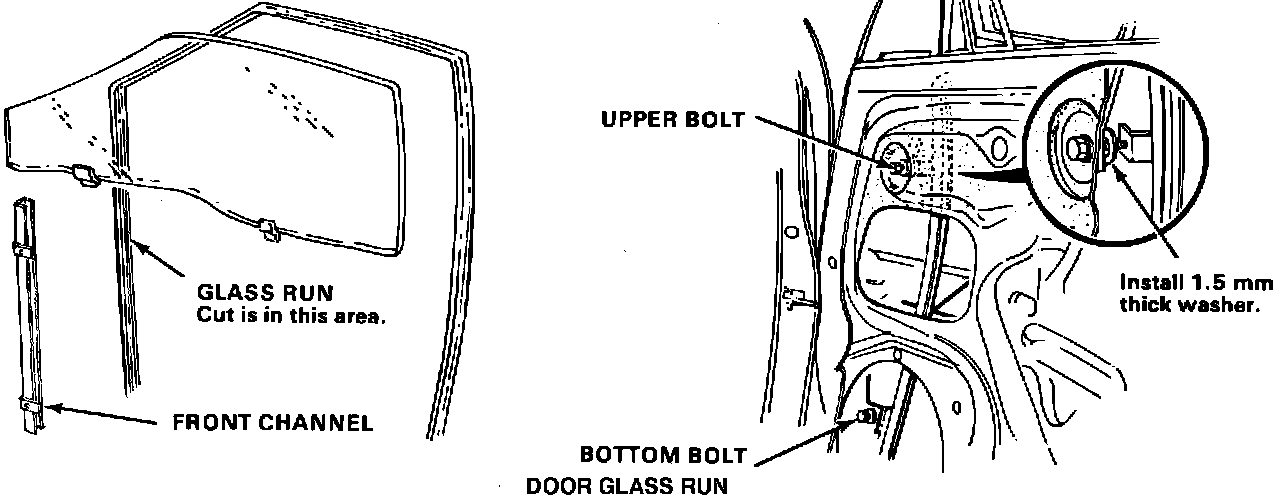

Door Glass Run:

CORRECTIVE ACTION

1. Remove the door trim panel.
2. Roll the window completely down.
3. Remove the glass run from the door.
4. Remove the upper bolt, then reinstall it with a 1.5 mm thick washer (such as H/C 0629824) between the front channel and the mount boss on the door as shown.


5. While holding the front channel in its most forward position, tighten the upper bolt.
6. Loosen, and then center the bottom bolt in its oblong hole; then re-tighten it.
7. Install a new glass run, then roll the window up and down several times to check for smoothness of operation.

PARTS INFORMATION

Right front door glass run - 1627702, P/N 75231-SB3-000 Left front door glass run - 1627728, P/N 75236-SB3-000

WARRANTY CLAIM INFORMATION

Operation number: Right side - 827130, Left side - 826130
Flat rate time: 0.5 hour Failed part H/C: Right side - 162770, Left side - 162772
Defect code: 021
Contention code: A99
