Recall - Left Drive Shaft

Model Applicable To File Under Bulletin No.

'84 1300 Hatchback 83-038
Civic within the VIN TRANS Issue Date
range shown below
FEB 1, 1984

Left Drive Shaft Recall(Supersedes Bulletin 83-038 dated Jan. 84)


PROBLEM

Due to the previously used manufacturing process, the left drive shaft could develop a crack at the boot locator groove. During a high stress situation, such as rapid acceleration or deceleration, the drive shaft could break without warning causing a sudden loss of power, and the car could crash.

VEHICLES AFFECTED
V. I. N. Range

1984 Civic 1300 Hatchback AG 000001-003314

CORRECTIVE ACTION

1... Check to see if the left drive shaft has already been replaced; the updated part will have a white paint mark around the shaft.

2. If the shaft has already been replaced, go on to step 3; if not, replace it with the updated part. See page 18-2 of the '84 Civic Service Manual for the replacement procedure.

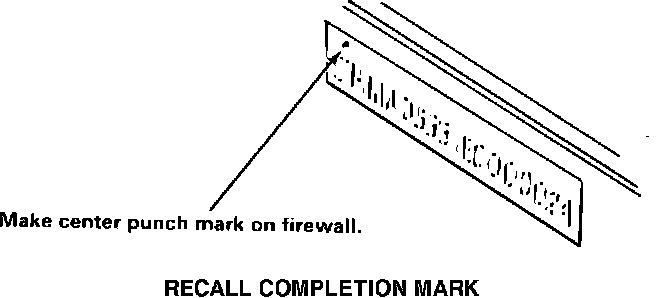

Recall Completion Mark:

3. Center punch a Recall Completion Mark on the firewall above the first letter of the VIN.

PARTS INFORMATION

Left drive shaft: H/C 1613736, P/N 44306-SB3-003
