Control Box Reference Diagram
Control Box Reference Diagram

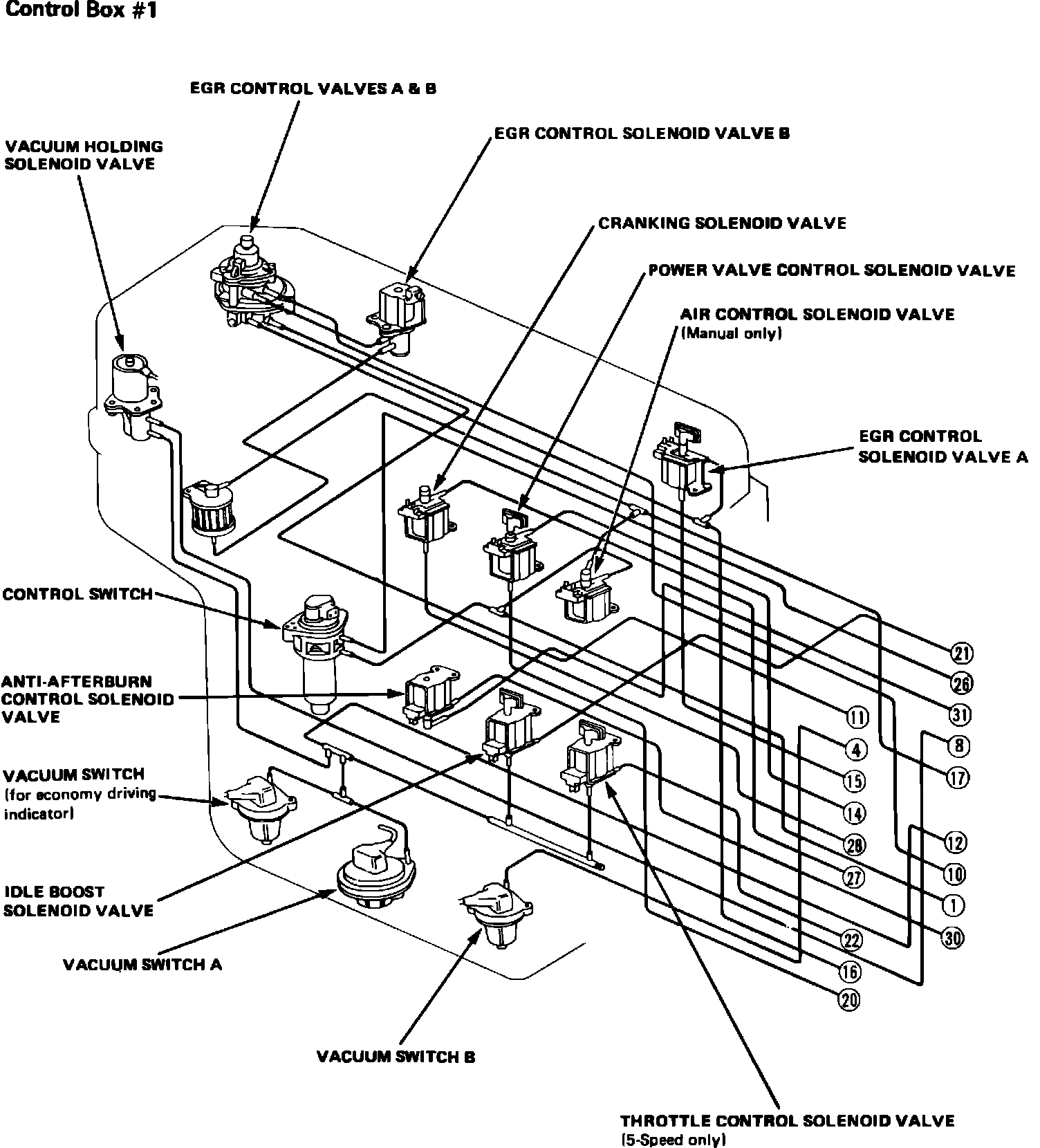

Fig. 114 Control box reference diagram.:
