Civic CVCC L4-1342cc 1.3L EV1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Idle Up Control Valve
Idle Up Control Valve

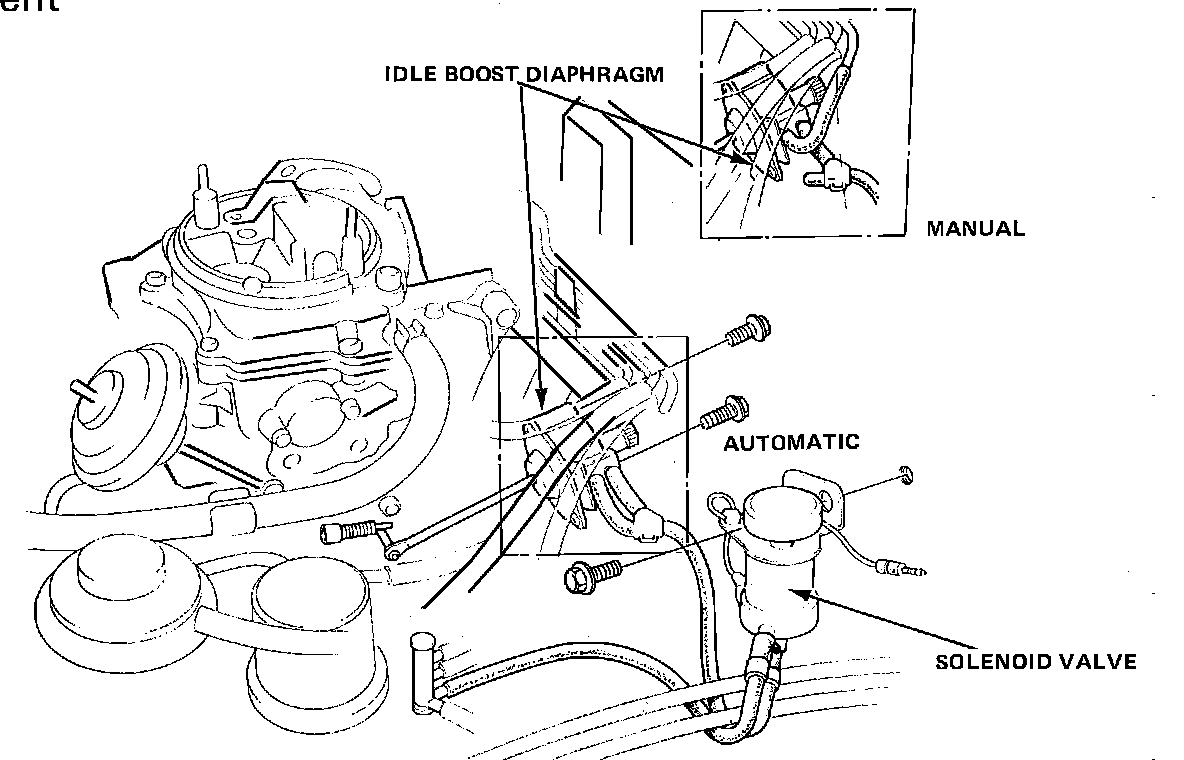

Fig. 38 Idle boost system, replacement.:
