Routing

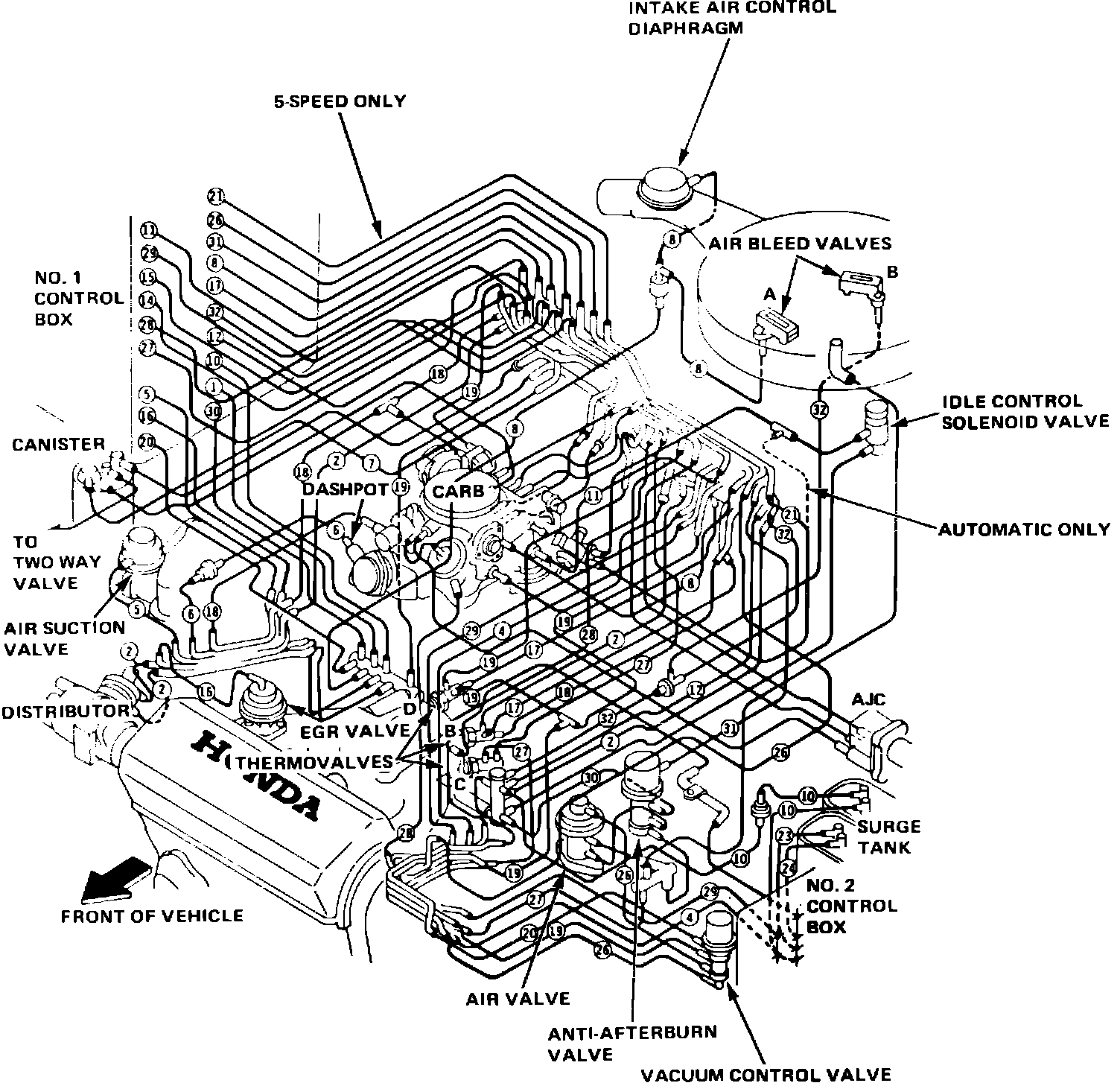

Fig. 115 Engine compartment reference diagram.:

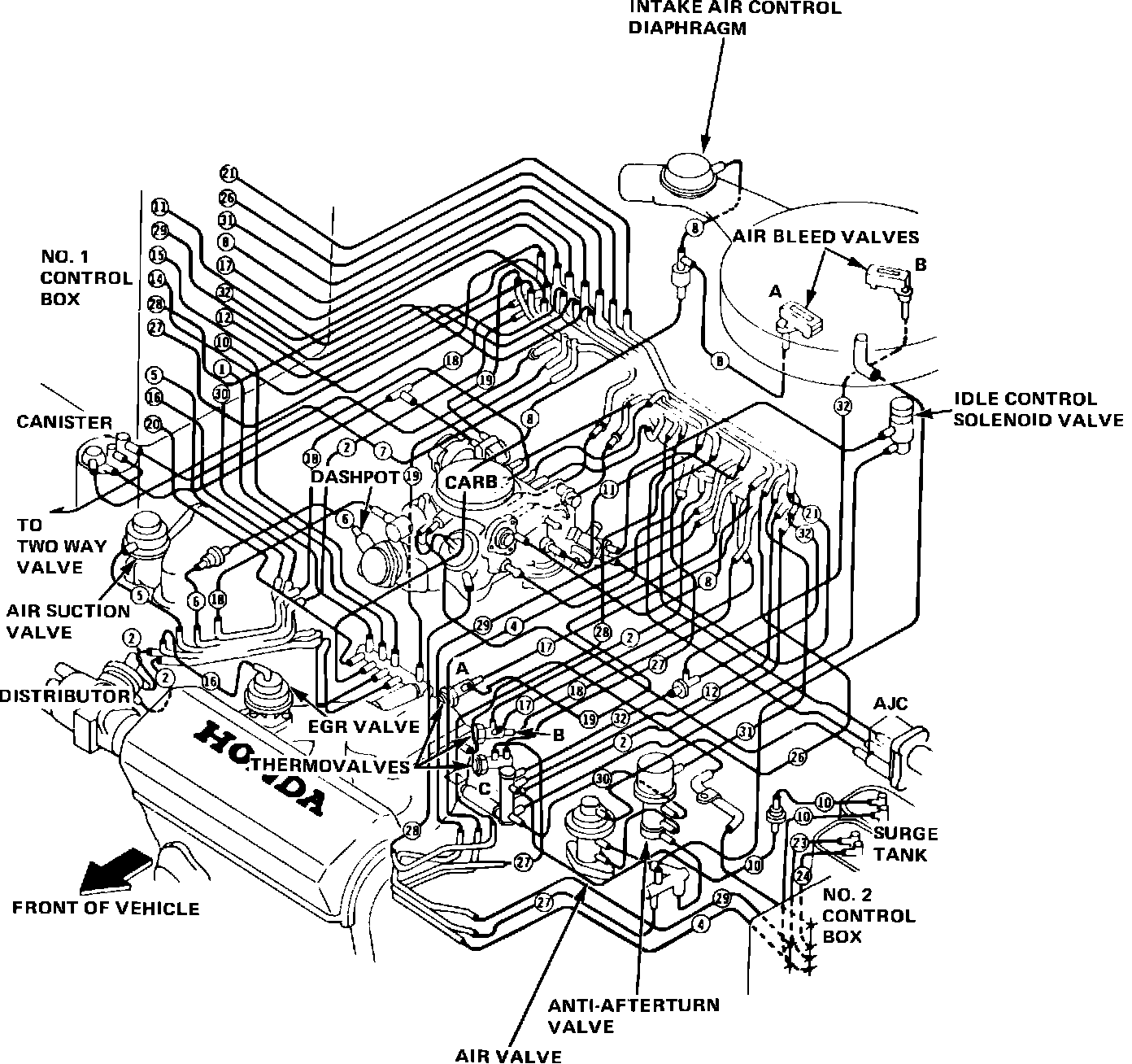

Fig 116 Engine compartment reference diagram.:
