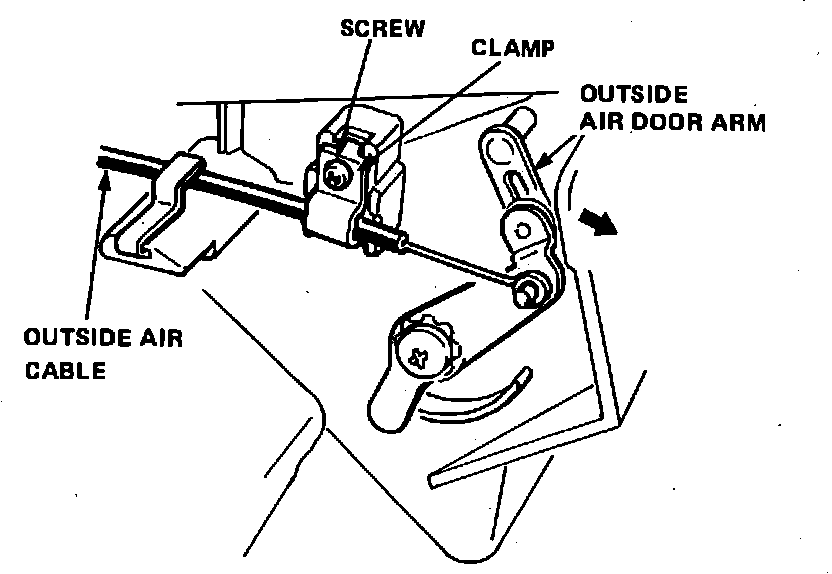

Recirculation Cable

Fig. 12 Outside Air Cable Adjustment:

1. Slide outside air/recirc door to OUTSIDE AIR position.
2. Pull outside air door arm to open door (rearward), Fig. 12.
3. Connect cable end to control arm and set cable with clamp by tightening screw.
4. Slide outside air/recirc lever to RECIRC and make sure outside door is closed.
