Home
>>
Honda
>>
1984
>>
CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

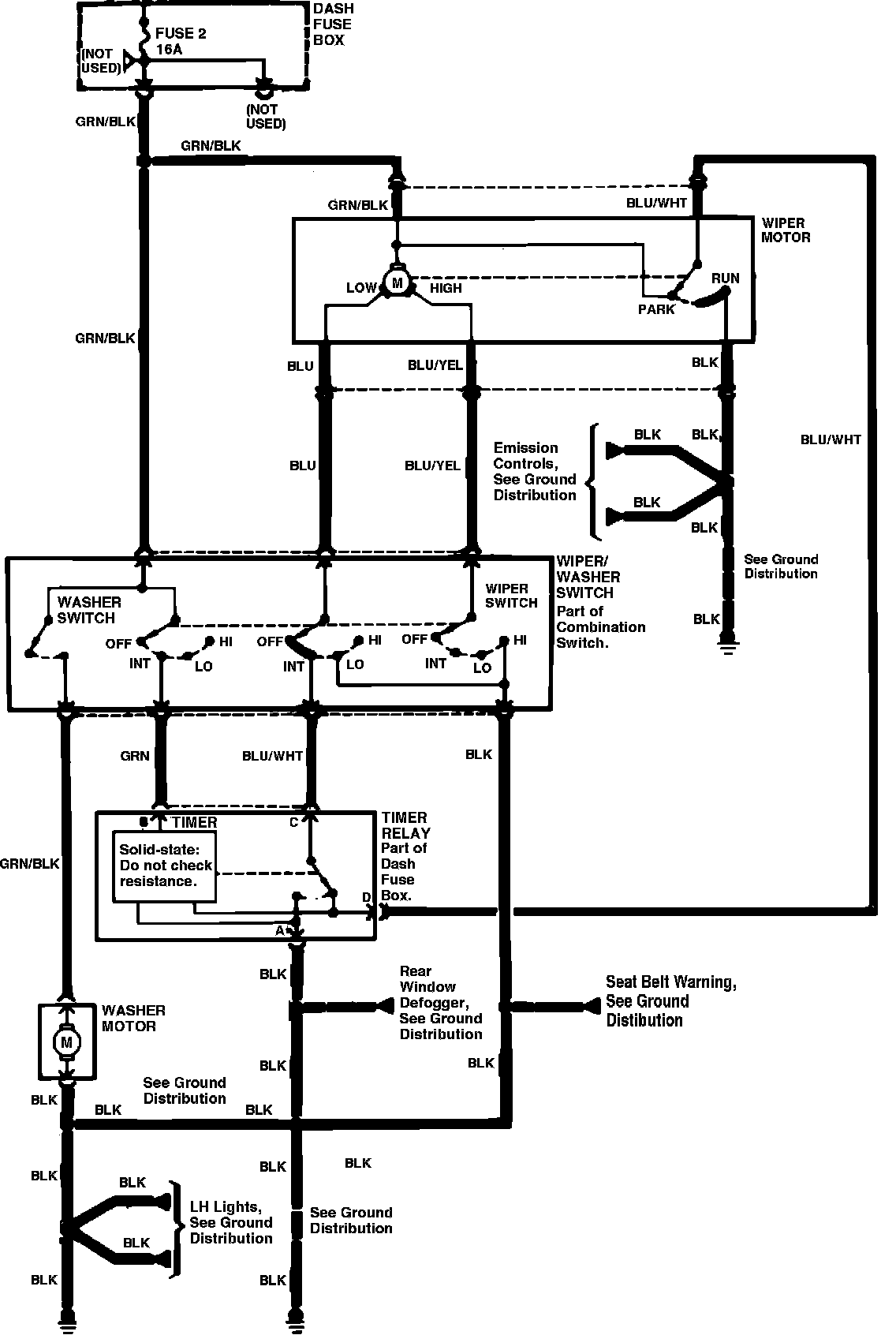

Fig. 97 Wiper/Washer Wiring Circuit. CRX:
