Vanity Lamp
Vanity Lamp

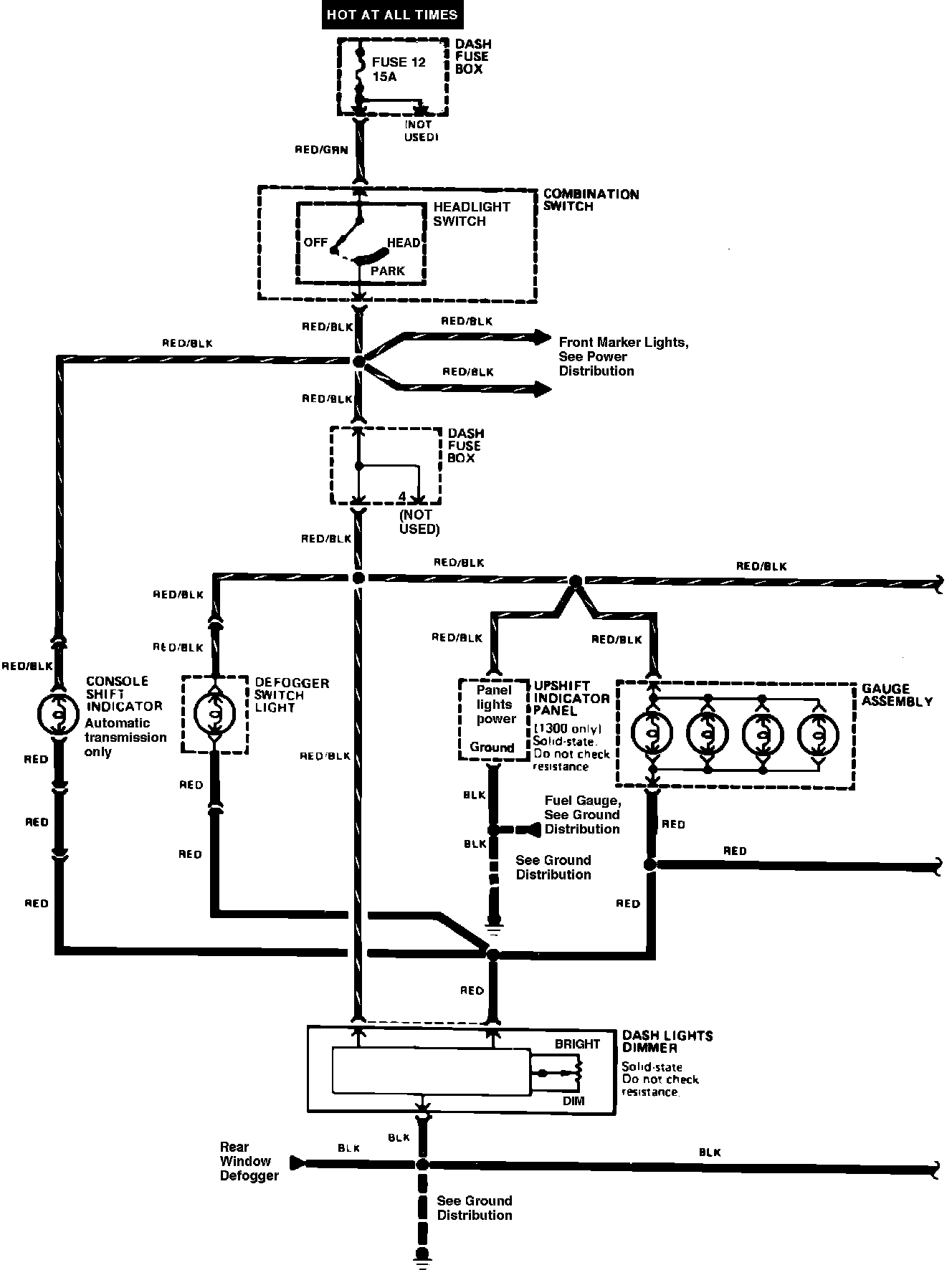

Fig. 72a Console & Dash Lights Wiring Circuit (Part 1 of 2). CRX:

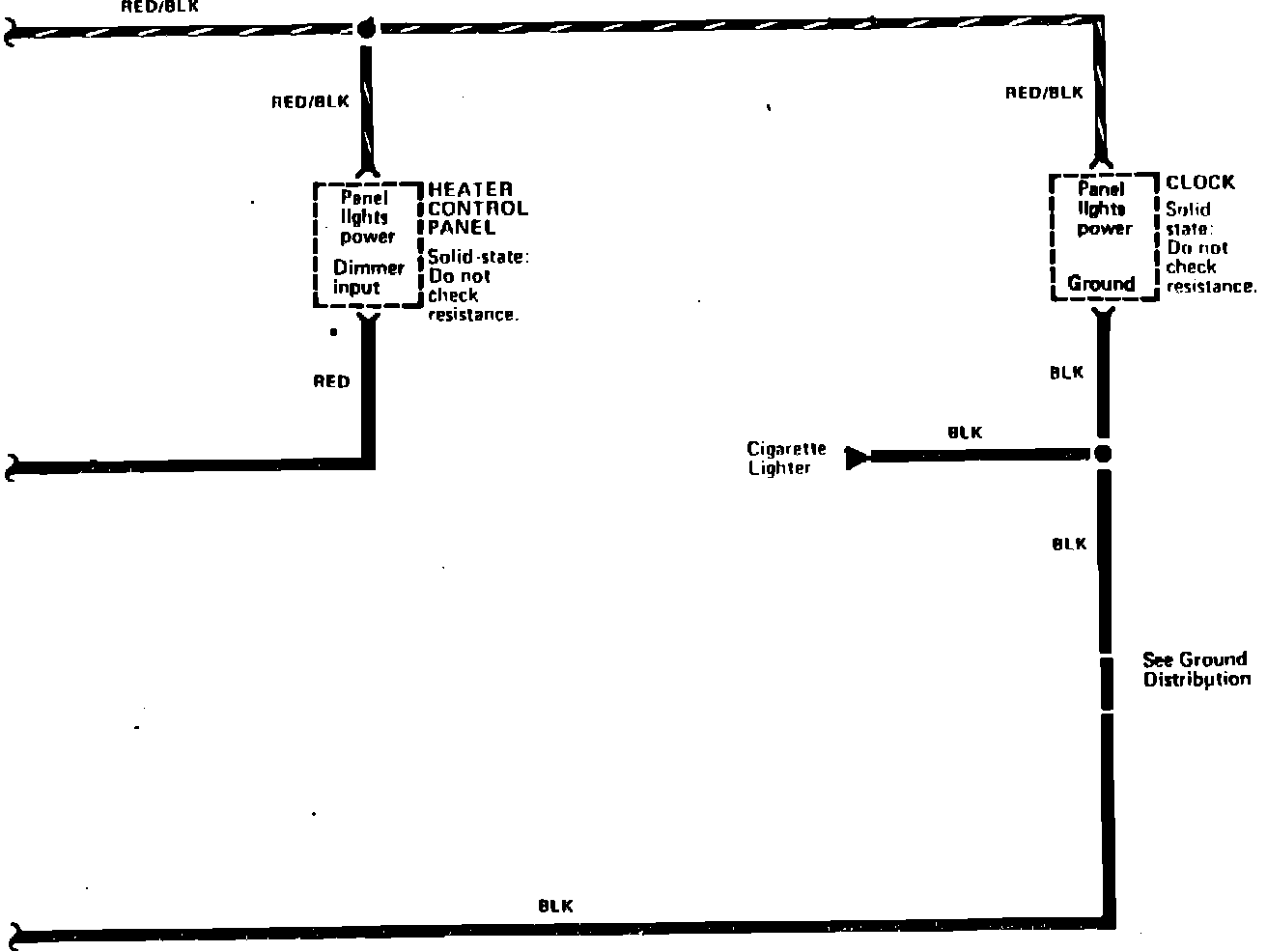

Fig. 72b Console & Dash Lights Wiring Circuit (Part 2 of 2). CRX:
