Honda
>>
1984
>>
CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Blower Motor
Blower Motor

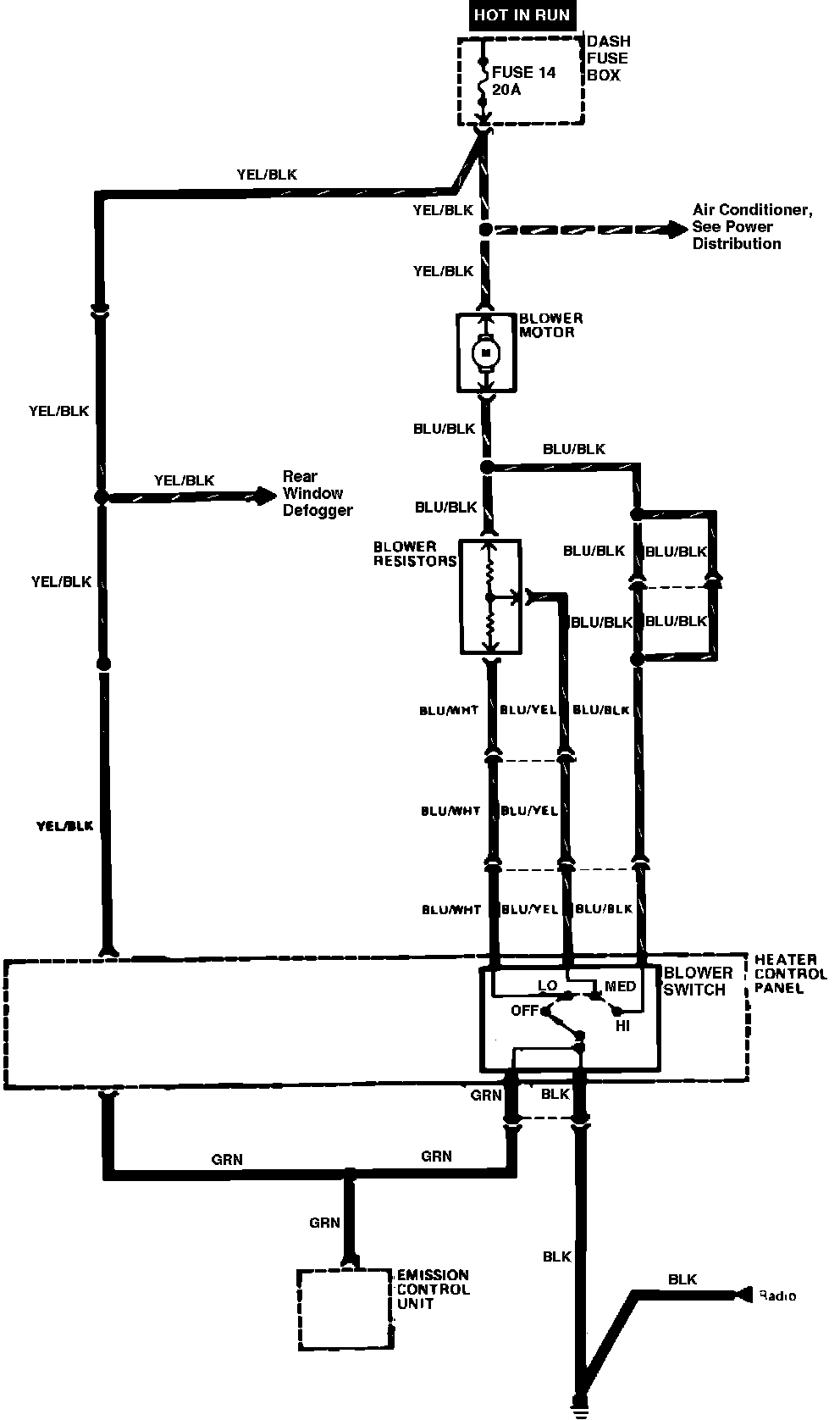

Fig. 67 Blower Control Wiring Circuit. CRX:
