Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1984
>>
CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Temperature Gauge
Temperature Gauge

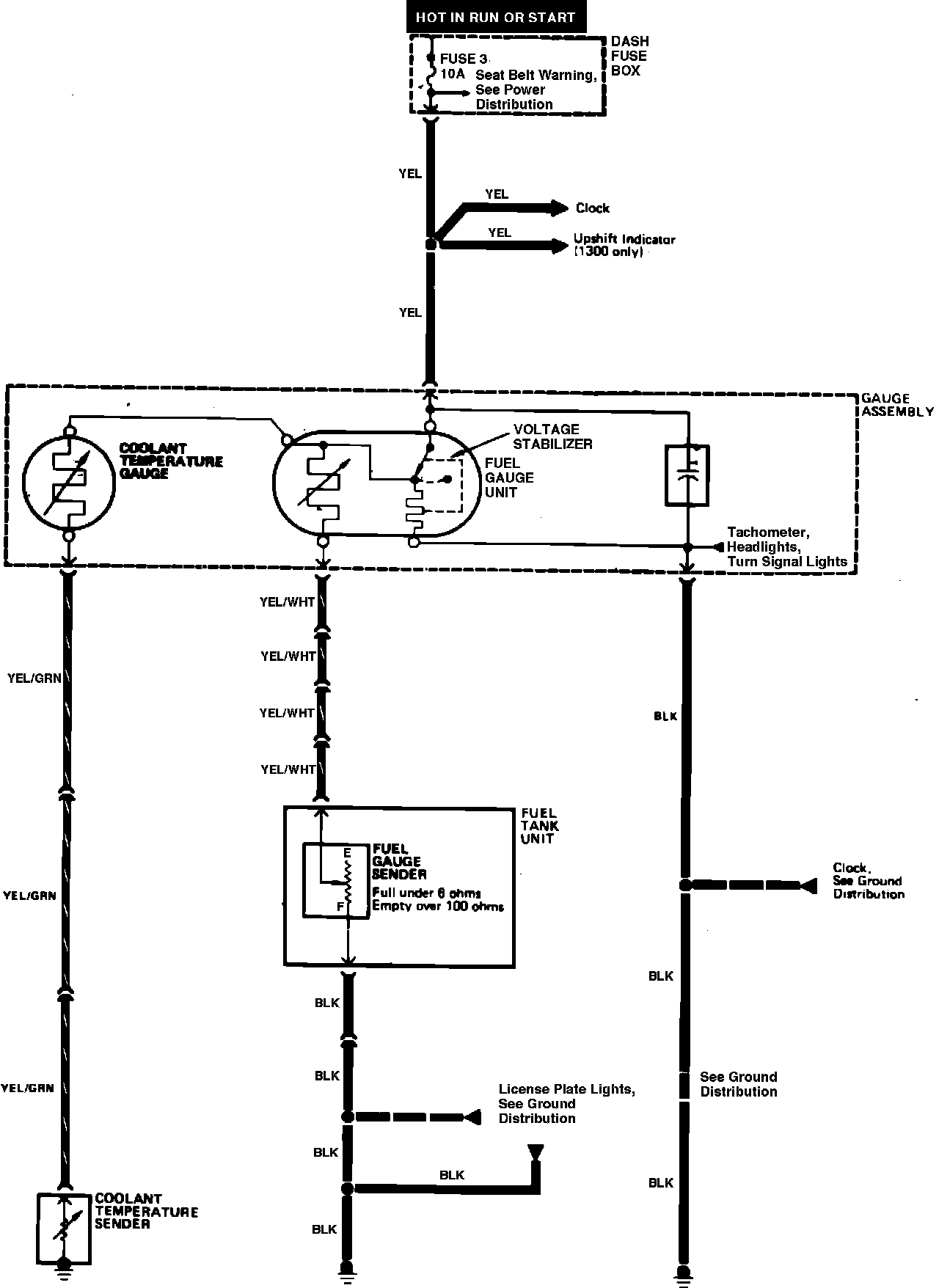

Fig. 73 Coolant Temperature & Fuel Gauges Wiring Circuit. CRX:
