Cooling System
>>
System Diagram
System Diagram

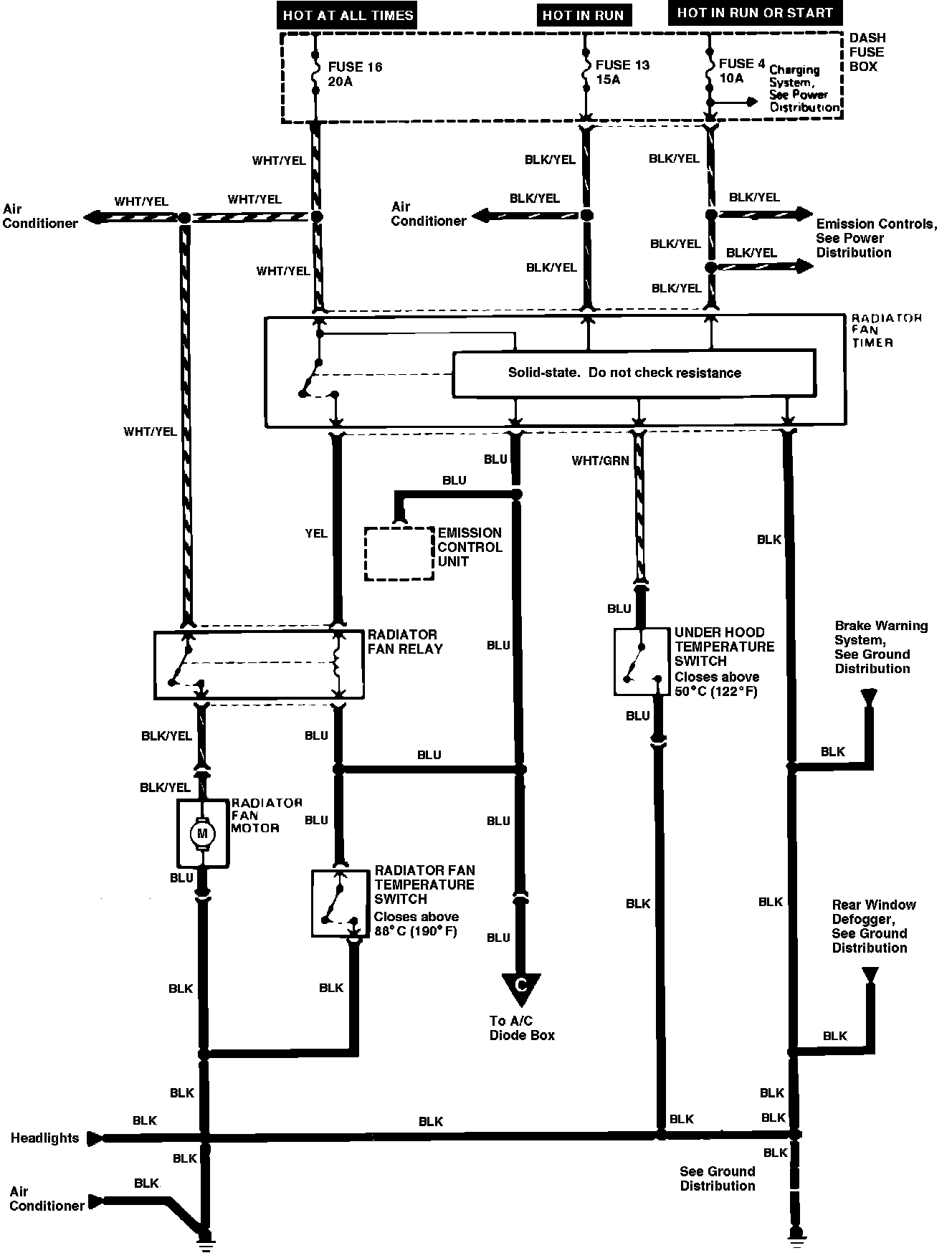

Fig. 75 Cooling Fan Wiring Circuit. CRX W/1500 Engine:
