Windows - Front Windows Raise/Lower Slowly

Bulletin No.
87-012

Issue Date
MAY 15, '87

Model
'82-87

Applicable To
ALL

File Under
BODY

Binding Front Window Mechanism
(Supersedes 86-022, dated September 26, 1986)

SYMPTOM

Front power windows raise or lower slowly or, if the windows are manual, raising or lowering them requires extra effort.

CORRECTIVE ACTION

^ For '87 Accord, do steps 1, 2, 6, 7, 8, 9, and 10. [NEW]

^ For '86 Accord, do steps 1 through 10.

^ For '82-85 Accord, do only steps 7 through 10.

1. Remove the door trim panel, the window, and the glass run channel, following the Service Manual procedure.

2. Remove the outer window molding by prying up with a long flat tip screwdriver at the rear edge of the door.

CAUTION:
Be careful not to mar the painted surface.

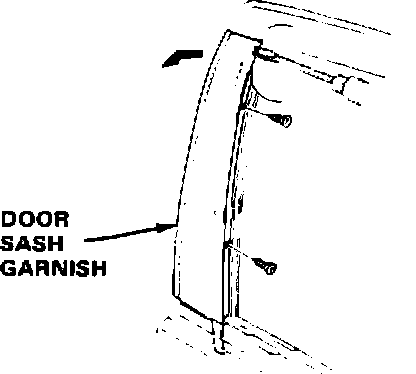

3. Remove the two door sash garnish screws that were under the glass run channel. Remove the garnish by prying up as shown, starting at the top.

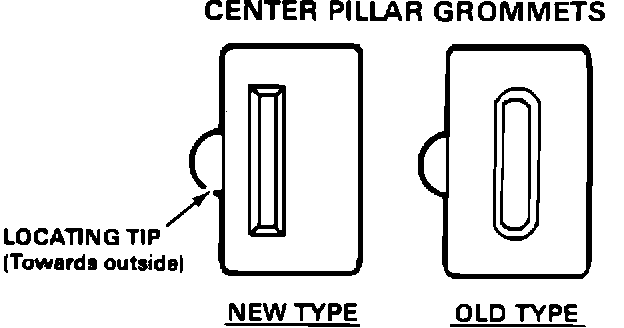

4. Replace the two center pillar grommets that hold the garnish screws in place with the new type listed under Parts Information. Install the grommets with the locating tip facing outward.

5. Replace the glass run channel with the new type listed under Parts Information.

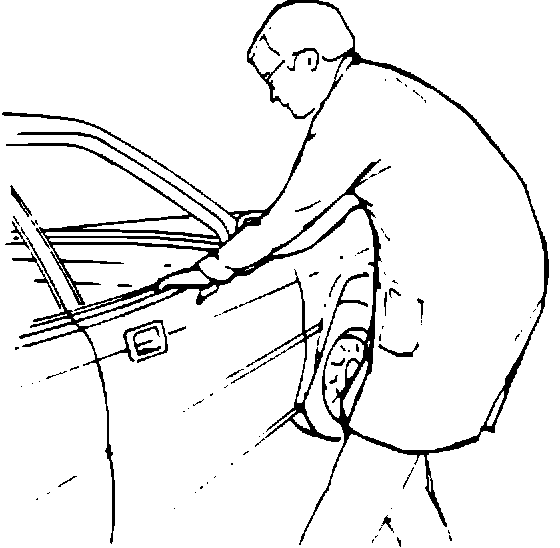

6. Pull (by hand) on the outside door skin at the center of the window opening until it conforms with the curve of the glass.

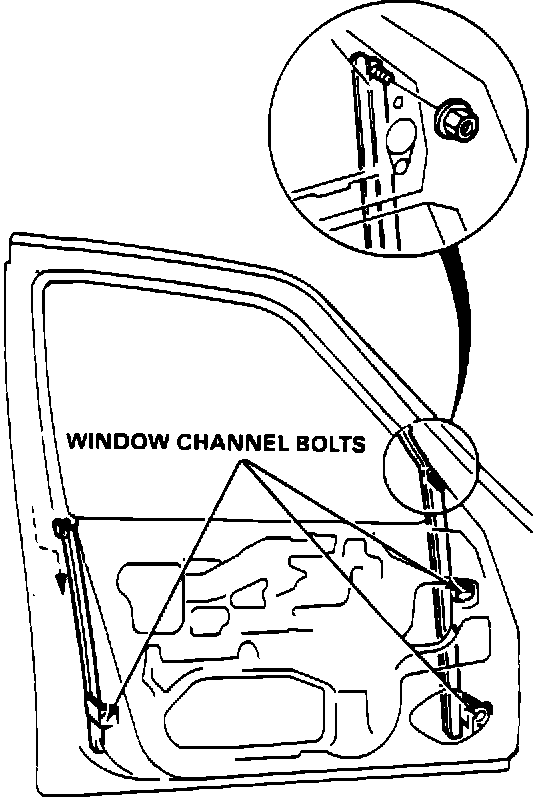

7. Roll the window down and release tension by loosening the three bolts and one nut holding the front and rear window channels.

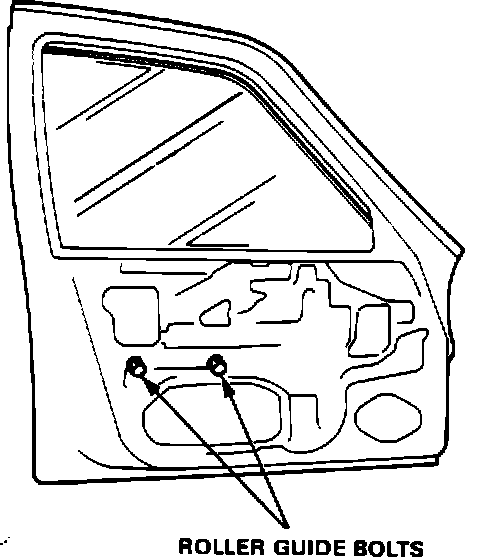

8. Roll the window up half way and loosen the roller guide mount bolts. Adjust the roller guide to a "neutral" position. Retighten the bolts and check for ease of window operation. Readjust the roller guide if necessary.

9. Spray the vertical sections of the glass run channel with Honda Silicone Spray (H/C 1385731) or equivalent. Lubricate the window regulator roller mechanism with Honda Lithium Grease (H/C 1385780) or equivalent.

10. Reassemble the remaining door components and recheck window operation.

PARTS INFORMATION

NOTE: [NEW]
There is no need to replace any parts on 1987 Accord.

Glass run channel 3-Dr RF
H/C 2250926, P/N 72235-SE0-003
Glass run channel 3-Dr LF
H/C 2185007, P/N 72275-SE0-003
Glass run channel 4-Dr RF
H/C 2184885, P/N 72235-SE3-003
Glass run channel 4-Dr LF
H/C 2185015, P/N 72275-SE3-003
Center pillar grommet
H/C 2498848, P/N 90601-SE3-305

WARRANTY CLAIM INFORMATION

Normal warranty applies.

These repairs, like all repairs, are eligible for goodwill consideration by your District Service Manager. You must obtain DSM authorization before starting the work.

1987 ACCORD [NEW]

Operation number:
Left door - 815025
Right door - 816030

Flat rate time:
0.6 hour per door

Failed part H/C:
Left door - 2183184
Right door - 2183168

Defect code:
030

Contention code:
B99

'86 ACCORDS

Operation number:
827140

Flat rate time:
0.8 hour per door

Failed part H/C:
Use the H/C of the glass run channel you replace.

Defect code:
030

Contention code:
B99

'82-85 ACCORDS

None; for information only.
