Engine - Bouncing/Jogging Ride Quality

Model Applicable To File Under Bulletin No.

Accord up to 84-030
'84 ACCORD VIN. ... . 136357 SUSPENSION Issue Date
'84 PRELUDE Prelude up to
VIN . . . 021691 AUG. 20, '84
1984 Accord and Prelude Ride Quality

PROBLEM

A bouncing or "jogging" sensation in ride quality from the right side of the front-end while driving over a wavy or rolling road surface (such as freeways made of concrete slabs that have sagged or settled in the middle). It is not the normal front-to-back rocking motion caused by such a road surface. The steering wheel does not vibrate as it does with tire unbalance.

Engine Mounts:

CORRECTIVE ACTION

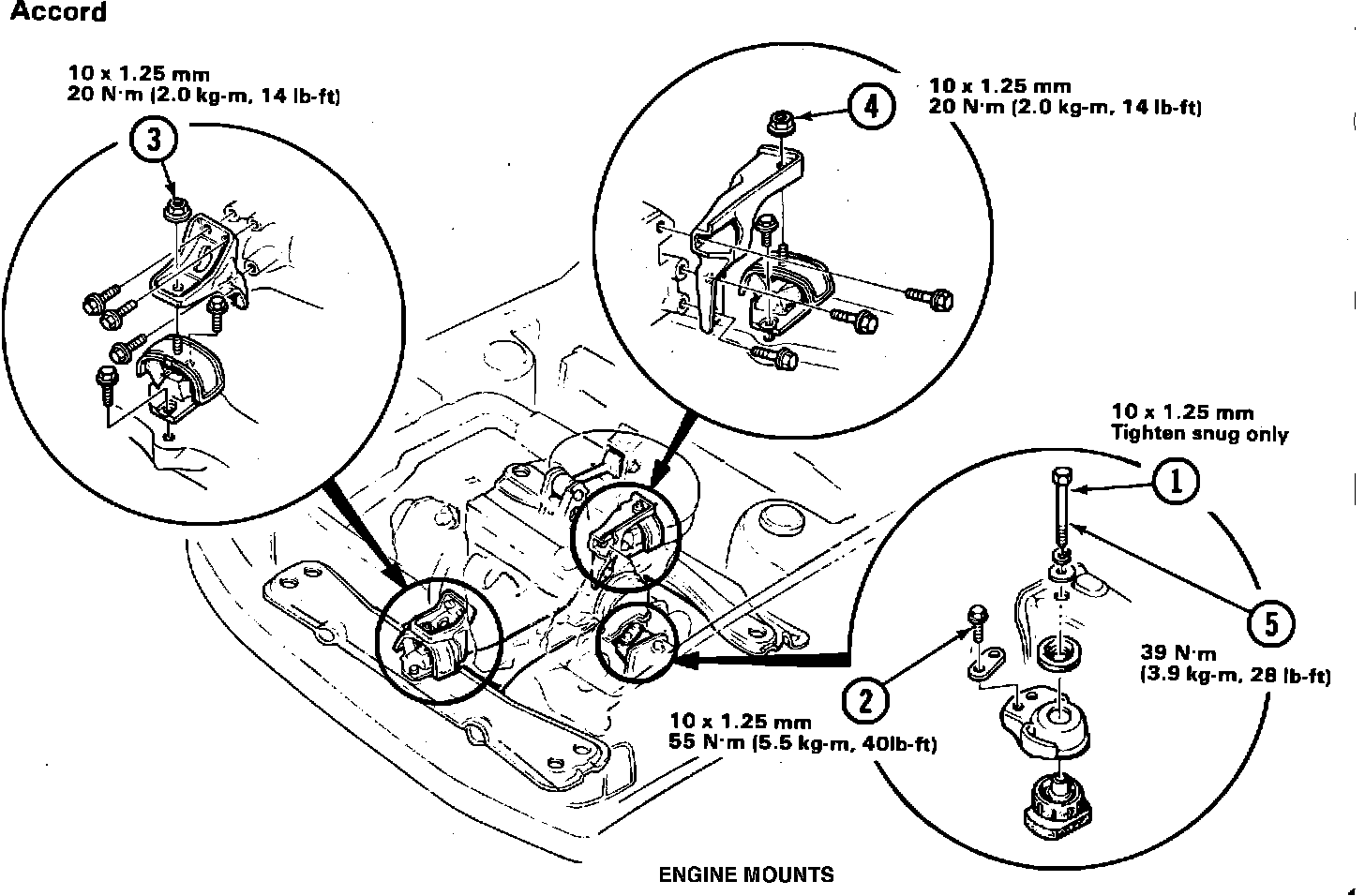

Replace all three engine mounts with the new ones listed below. Tighten the new mounts in the sequence shown on the back of this page.

PARTS INFORMATION

Main mounts
Left mount
(order 2 per car)

Accord 5-Spd H/C 1816818
P/N 50811-SA5-670 H/C 1874734
and
Prelude ATM H/C 1816826 P/N 50821-SA5-981
P/N 50811-SA5-770

WARRANTY CLAIM INFORMATION

Operation number: 112400

Flat rate time: 1.5 hours

Failed part H/C: 1816818 for 5 speed 1816826 for Automatic

Defect code: 077

Contention code: B02
