Engine - Bouncing or Jogging Ride Quality

90honda02
Model Applicable To

Accord up to
'84 ACCORD VIN ... 136367
'84 PRELUDE Prelude up to
VIN. . . 021691
File Under Bulletin No.

84-030
SUSPENSION Issue Date

AUG. 20, '84
1984 Accord and Prelude Ride Quality


PROBLEM

A bouncing or "jogging" sensation in ride quality form the right side of the front-end while driving over a wavy or rolling road surface (such as freeways made of concrete slabs that have sagged or settled in the middle). It is not the normal front-to-back rocking motion caused by such a road surface. The steering wheel does not vibrate as it does with tire unbalance.


CORRECTIVE ACTION

Replace all three engine mounts with the new ones listed below. Tighten the new mounts in the sequence shown on the back of this page.

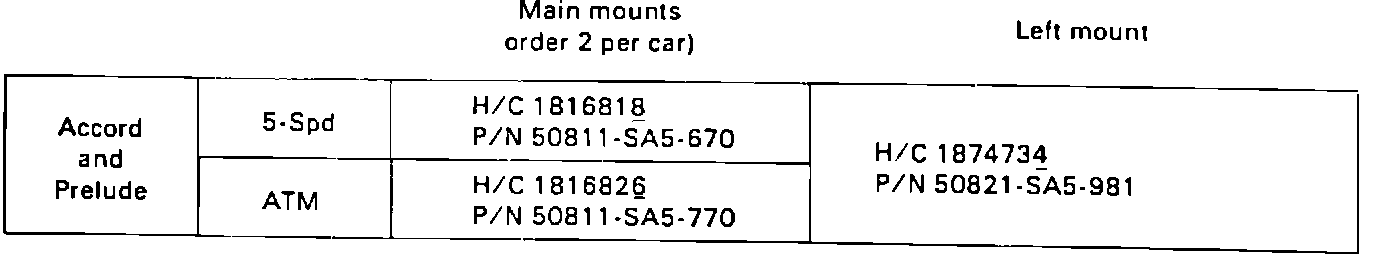

PARTS INFORMATION
WARRANTY CLAIM INFORMATION

Operation number: 1 1 2400

Flat rate time: 1.5 hours

Failed part H/C: 181 681 8 for 5 speed 1816826 for Automatic

Defect code: 077

Contention code: B02
