Float Level

FLOAT LEVEL ADJUSTMENT

WARNING: Do not smoke while working on fuel system. Keep open flame away from work area.

1. Place the car on level ground
2. Start and warm up the engine, snap the throttle between idle and 3,000 rpm several times then allow it to idle.

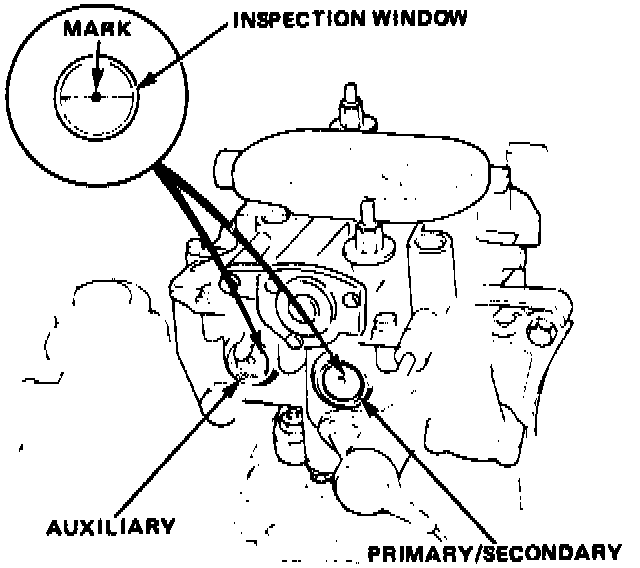

3. When the fuel level stabilizes, check that it is touchmg the dot on the inspection windows.

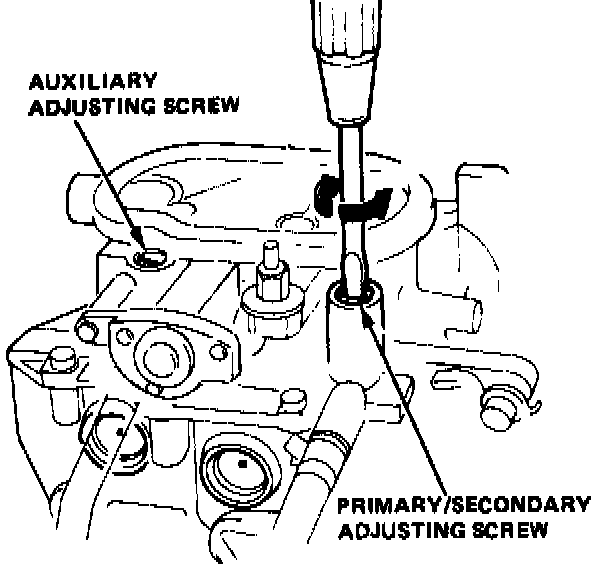

4. If the fuel level is not touching the dot, adjust it by turning the adjusting screw.

NOTE: Do not turn the adjusting screws more than 1/8 turn every 15 seconds.

5. Paint the adjustment screws with white paint after adjustment.
