Accelerator Pump: Adjustments

ACCELERATOR PUMP ADJUSTMENT
1. Before measuring accelerator pump linkage travel, make sure pump shaft travels freely throughout pump stroke. Make sure pump lever is in contact with pump shaft.

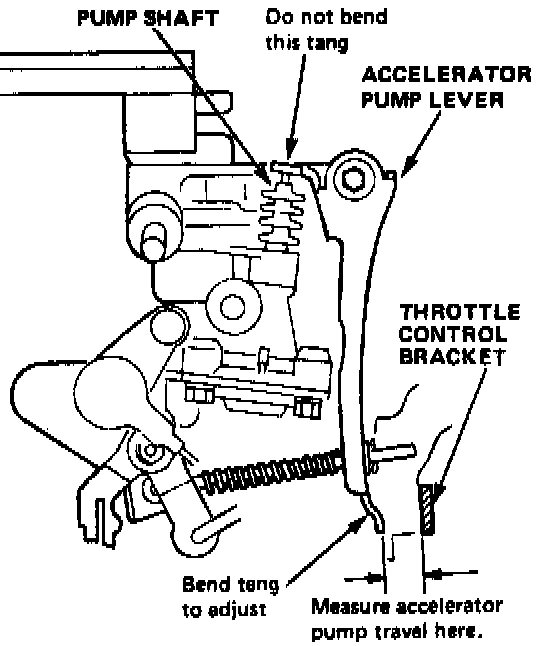

2. To check linkage travel, measure gap between bottom end of pump lever (tang) and stop as shown.

Limits: 11.5 mm - 12.0 mm (29/64 in. - 31/64 in.)
