Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

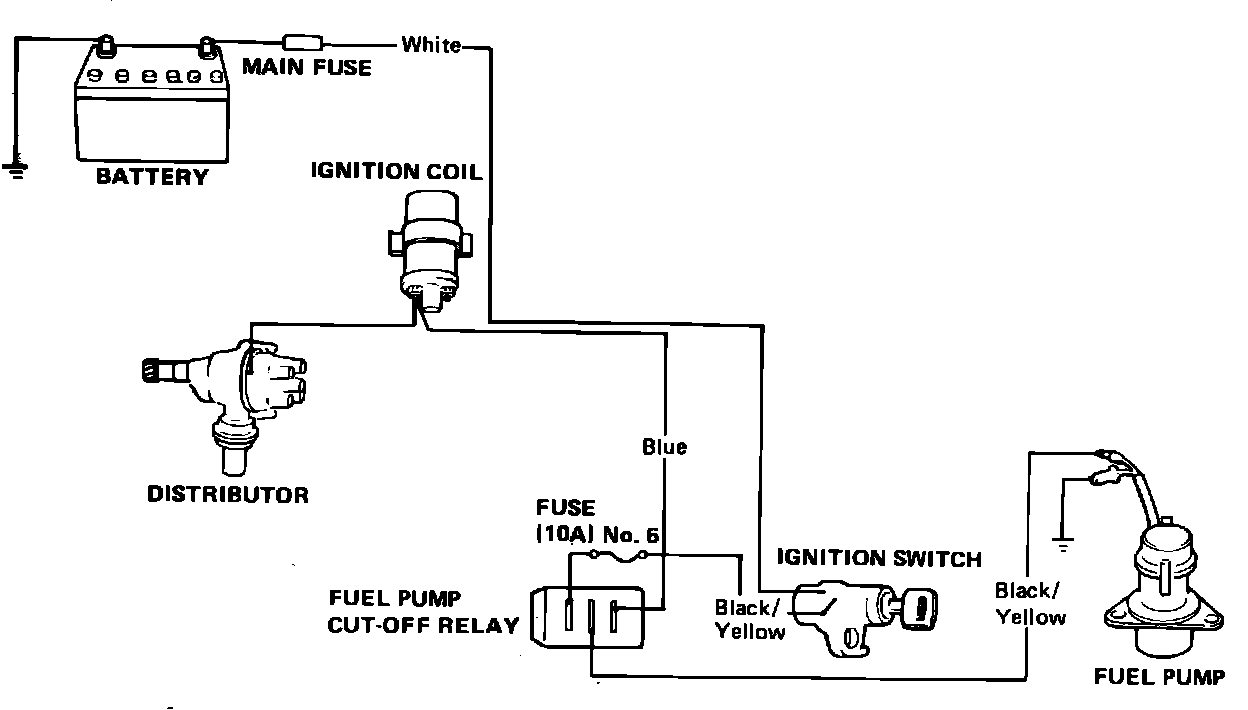

Fig. 39 Fuel Pump Cut-Off Relay Wiring Circuit. 1983 Civic:
