Valve: Service and Repair

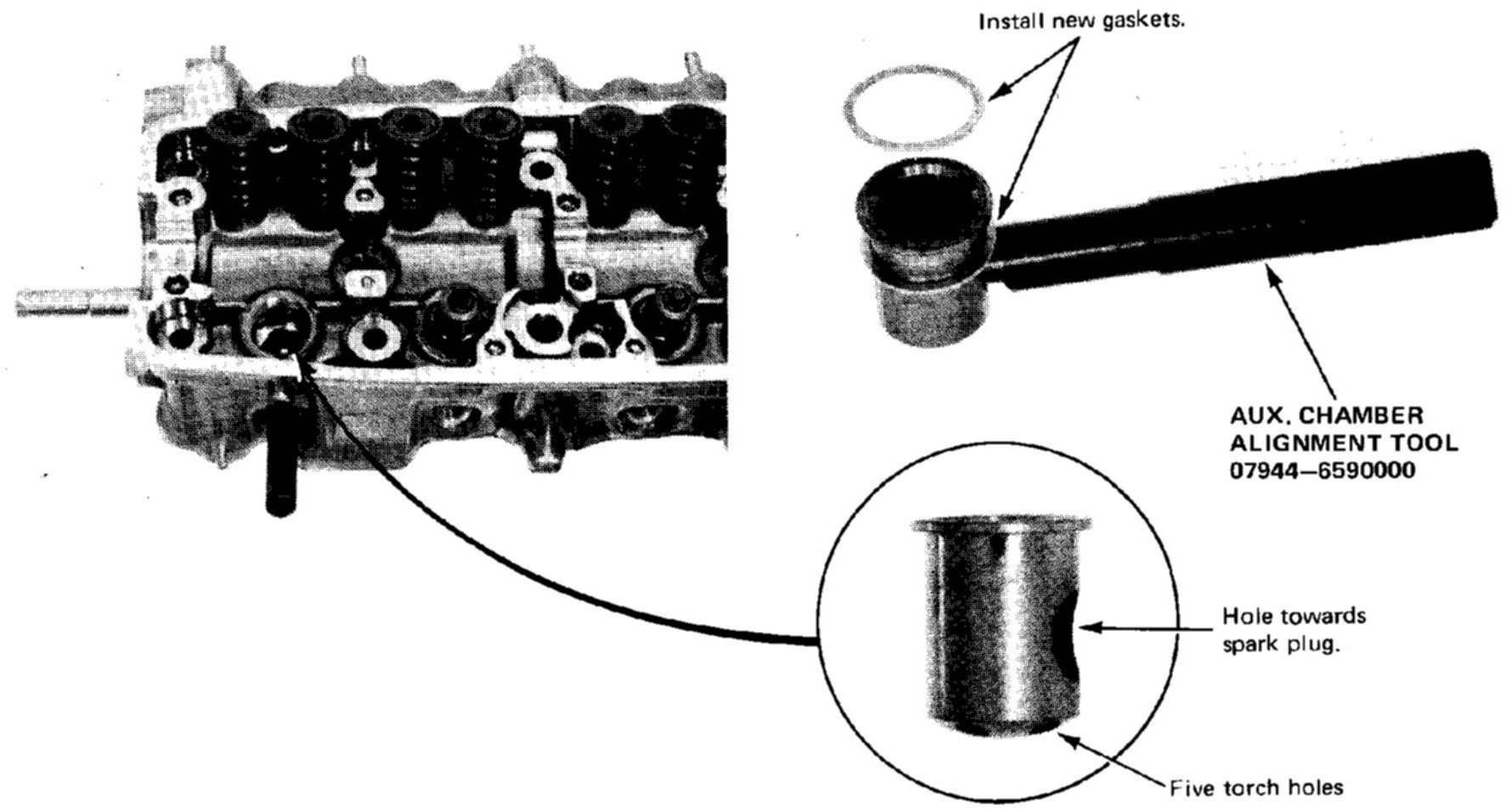

Auxiliary Chamber Installation

1. Install chamber in each auxiliary valve hole with two new gaskets.
2. Insert alignment tool, through spark plug hole, to center chamber.

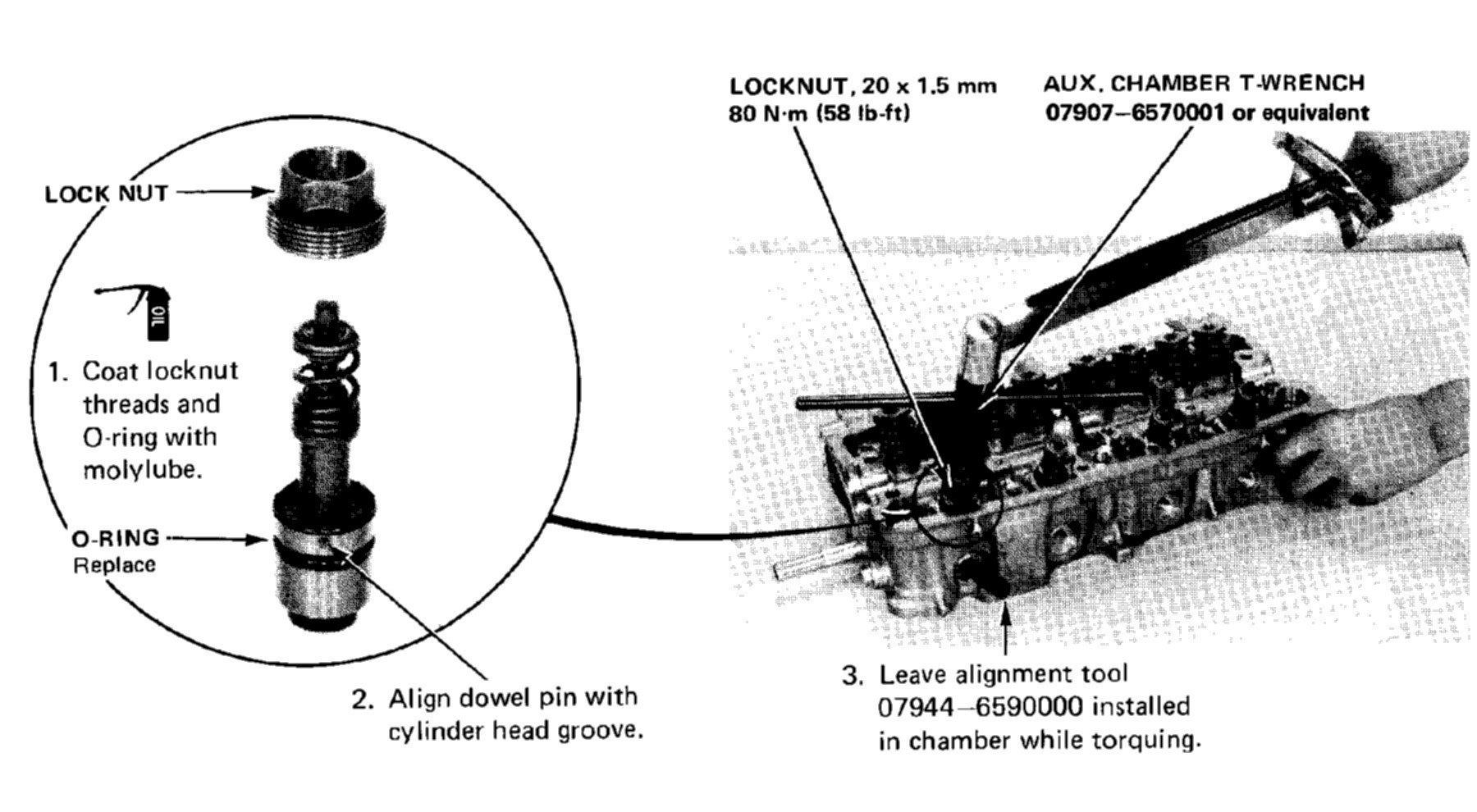

Auxiliary Valve Installation
