Home
>>
Honda Truck
>>
2009
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

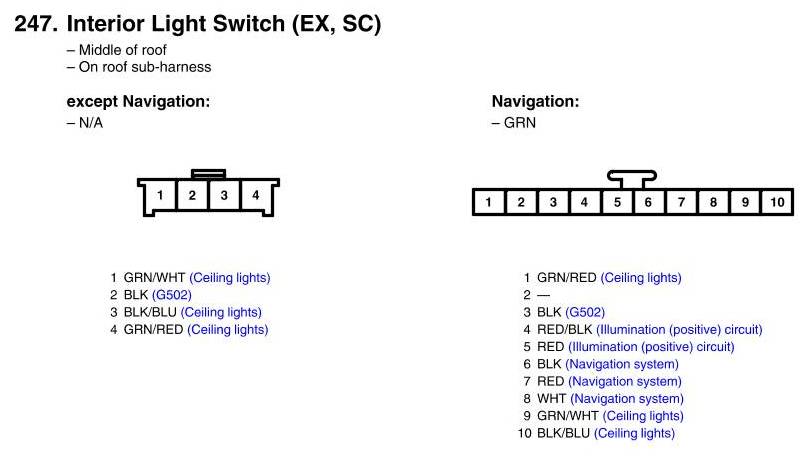

View 247 - Interior Light Switch Connector View (EX, SC)
View 247 - Interior Light Switch Connector View (EX, SC)
