Honda Truck
>>
2009
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Lighting Module
>>

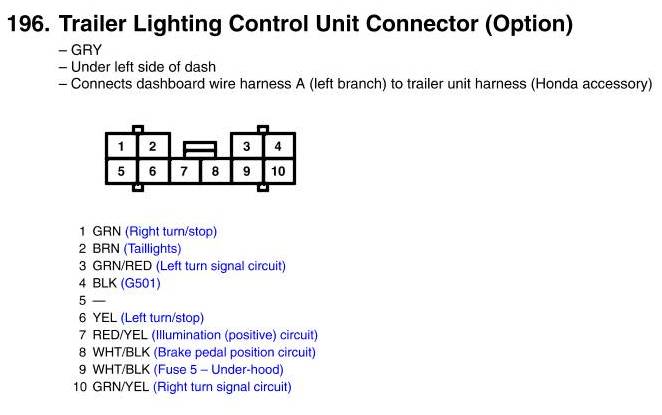

Trailer Lighting Control Unit Connector (Option) Connector View
Trailer Lighting Control Unit Connector (Option) Connector View
