Honda Truck
>>
2009
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

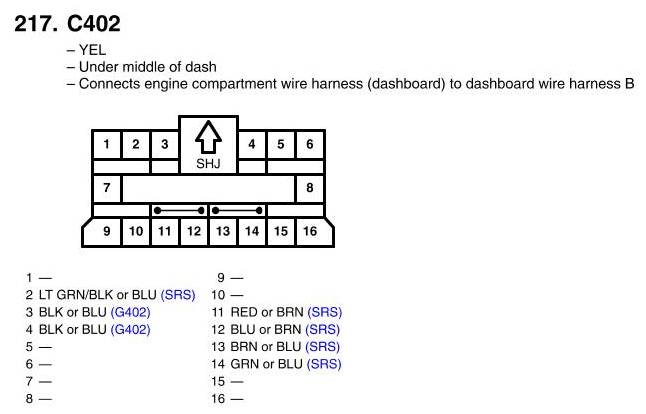

View 217 - C402 Connector View
View 217 - C402 Connector View
