Dynamic Damper Replacement

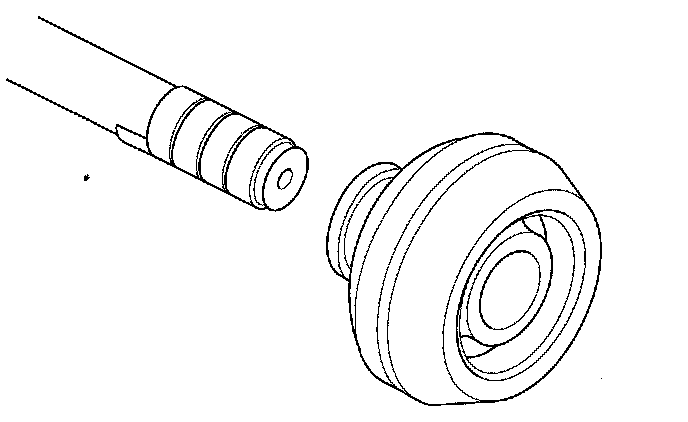

Dynamic Damper Replacement1. Remove the inboard joint.
2. Remove the dynamic damper bands.
^ If the band is a welded type, cut the band.
^ If the band is a double loop type, lift up the band end, and push it into the clip.
^ If the band is a low profile type, pinch the band using commercially available boot band pliers.
3. Remove the dynamic damper.

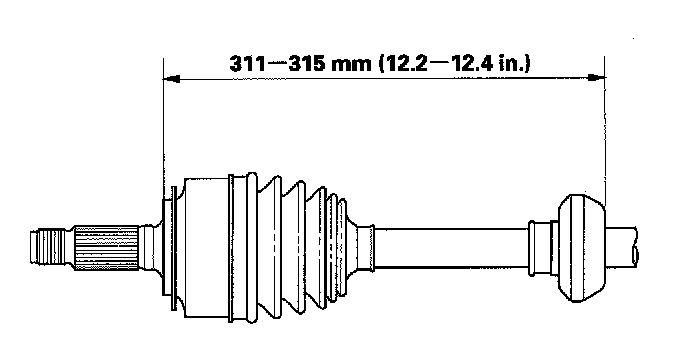

4. Adjust the position of the new dynamic damper to these measurements.
5. Install the dynamic damper band.
6. Install the inboard joint.
