Honda Truck
>>
2007
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Right Rear Door Subharness
Right Rear Door Subharness

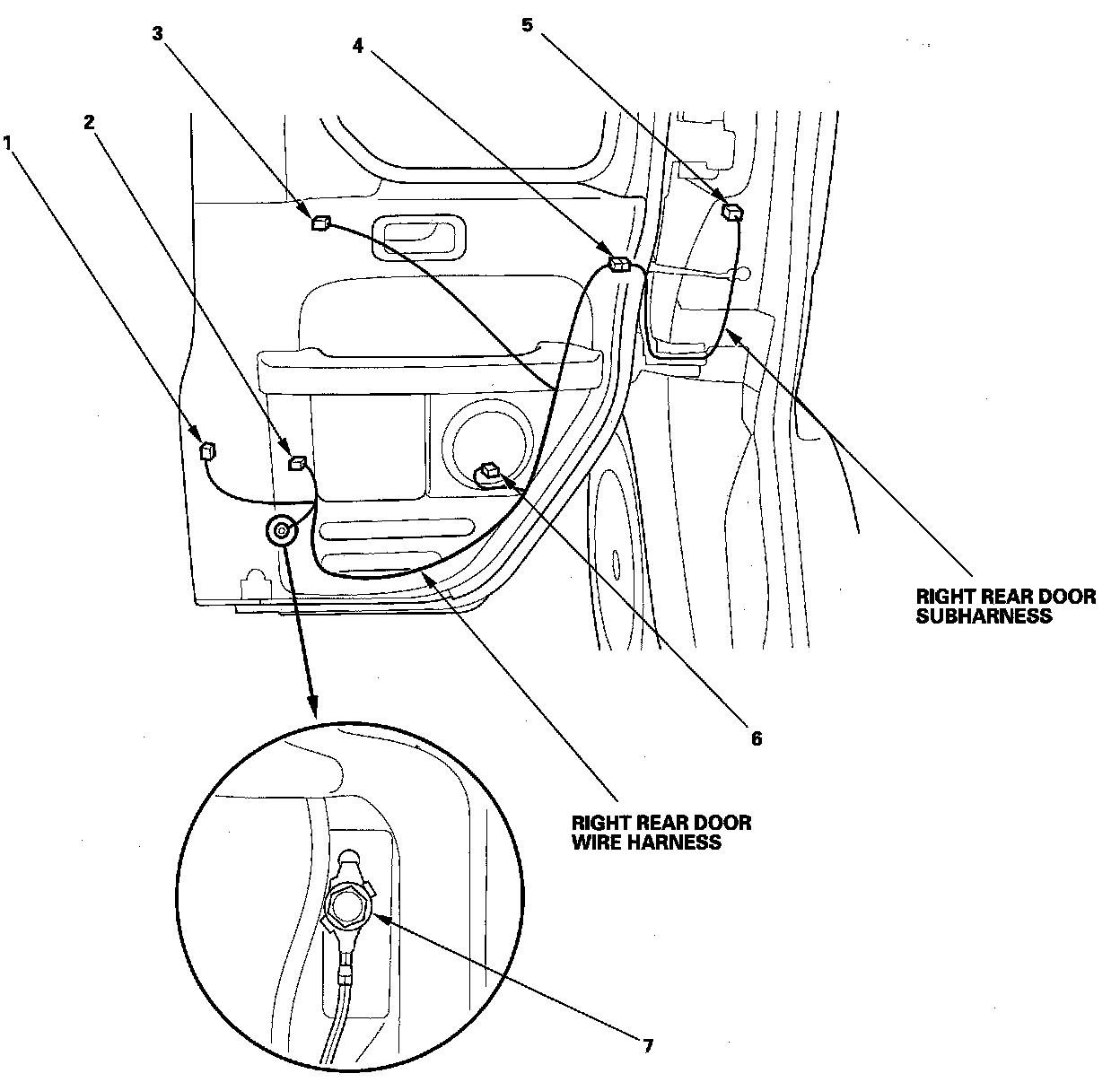

Harness Location View:

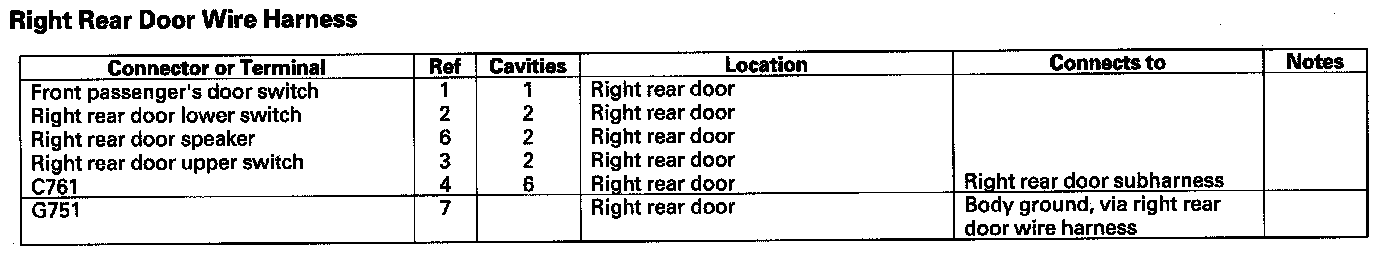

Right Rear Door Wire Harness:
