Home >> Honda Truck >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 91

View 76-100: 91

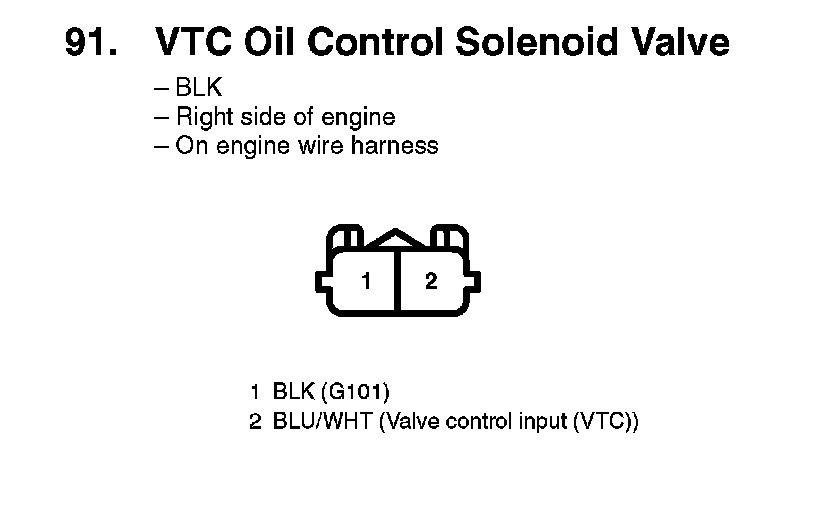

91. VTC Oil Control Solenoid Valve:
