Home >> Honda Truck >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126-150 >> 138

View 126-150: 138

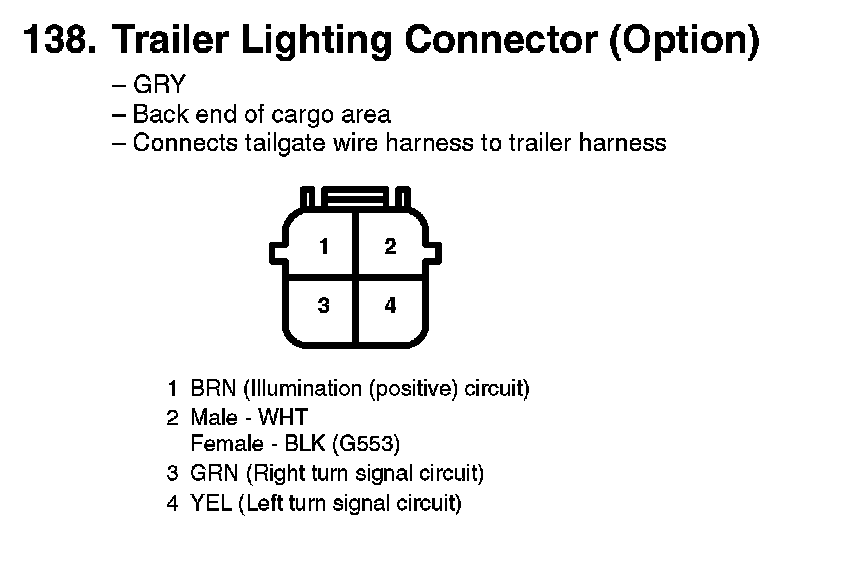

138. Trailer Lighting Connector (Option):
