Headlamp Bulb: Service and Repair

Bulb Replacement

Headlight (Except SC model)




1. Disconnect the 3P connector (A) from the headlight.
2. Remove the rubber cover (B).
3. Pull the retaining spring (C) away from the bulb (D), then remove the bulb.
4. Install a new bulb in the reverse order of removal. Make sure the tabs on the bulb align with the notches in the headlight.

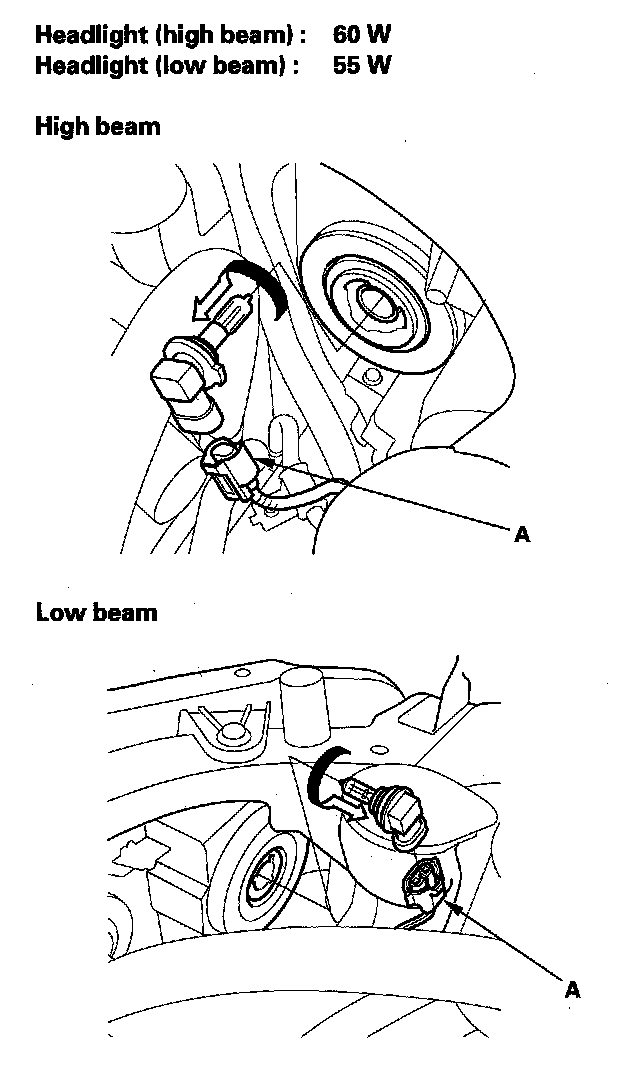

Headlight (SC model)




1. Disconnect the 2P connector (A) from the headlight.
2. Turn the bulb socket 45 "counterclockwise to remove the bulb.
3. Install a new bulb in the reverse order of removal.
