Circuit Diagrams

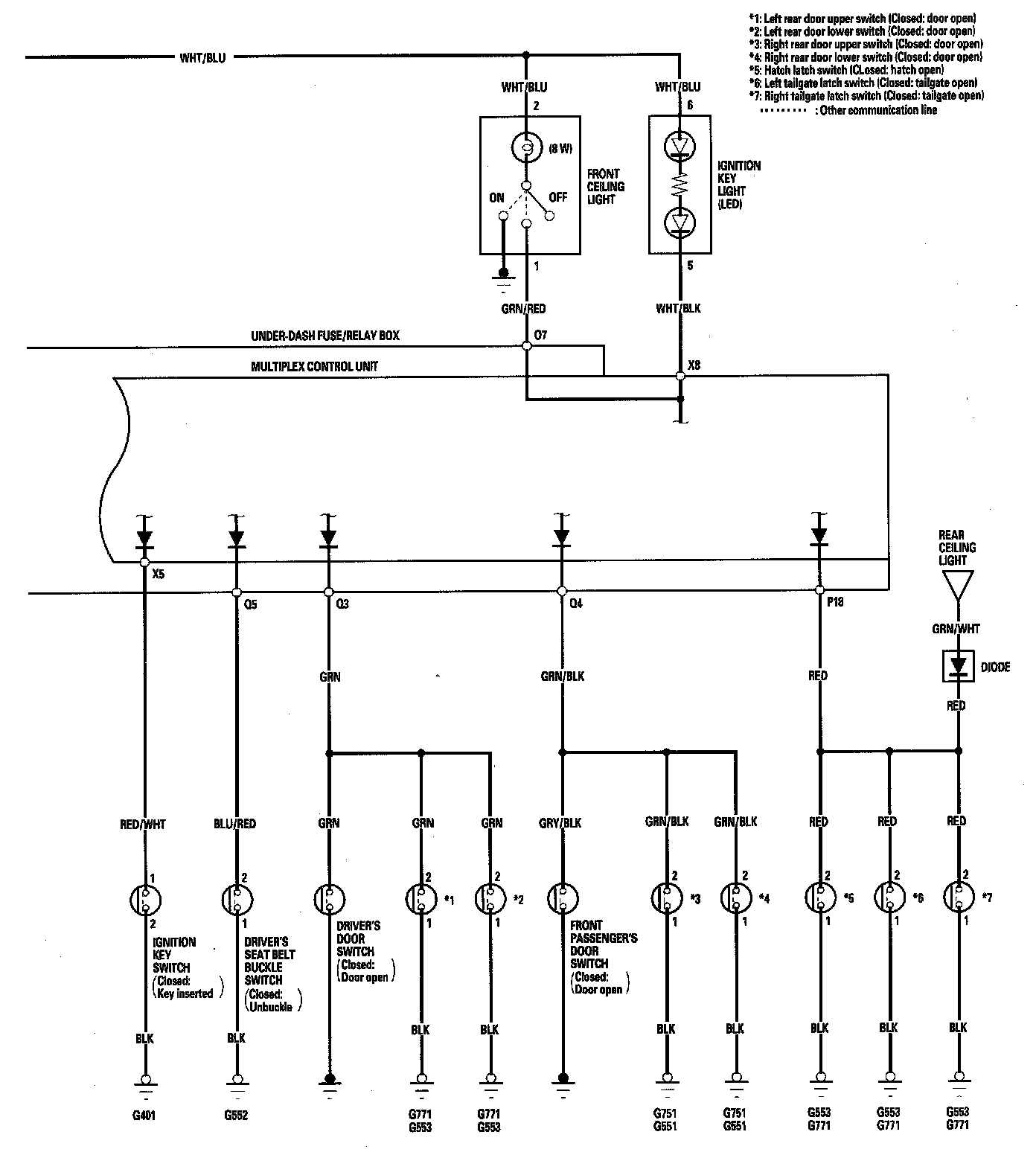

Multiplex Control System Circuit Diagram Part 1:



Multiplex Control System Circuit Diagram Part 2:
