Home >> Honda Truck >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 88

View 76-100: 88

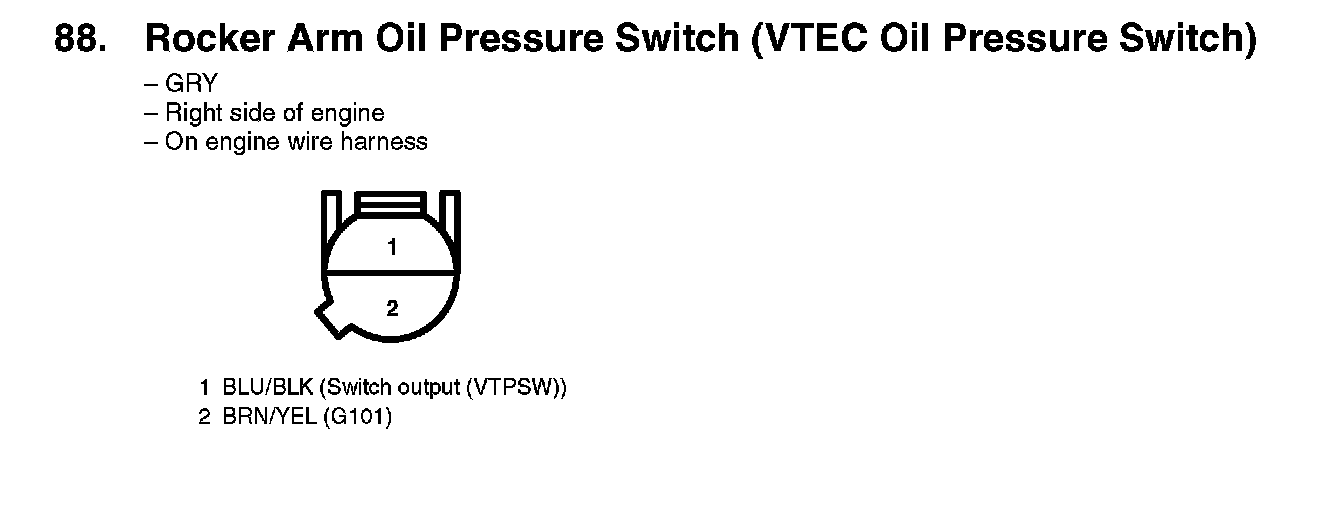

88. Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch):
