Home >> Honda Truck >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 26-50 >> 43

View 26-50: 43

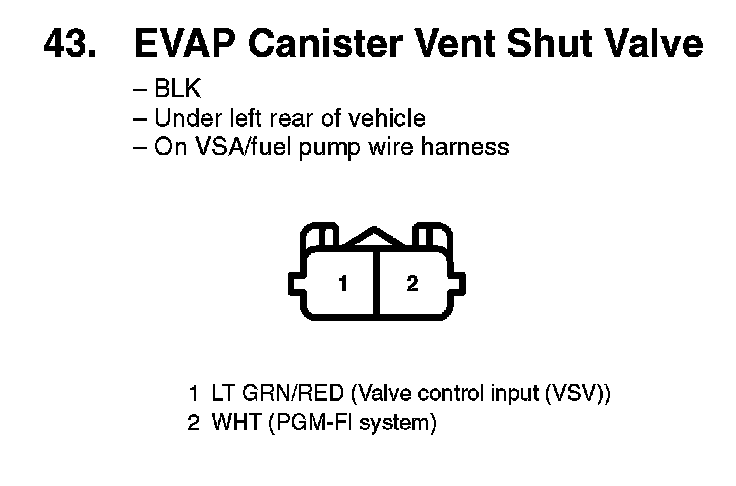

43. EVAP Canister Vent Shut Valve:
