Honda Truck
>>
2007
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>
View 226-250
>>
231
View 226-250: 231

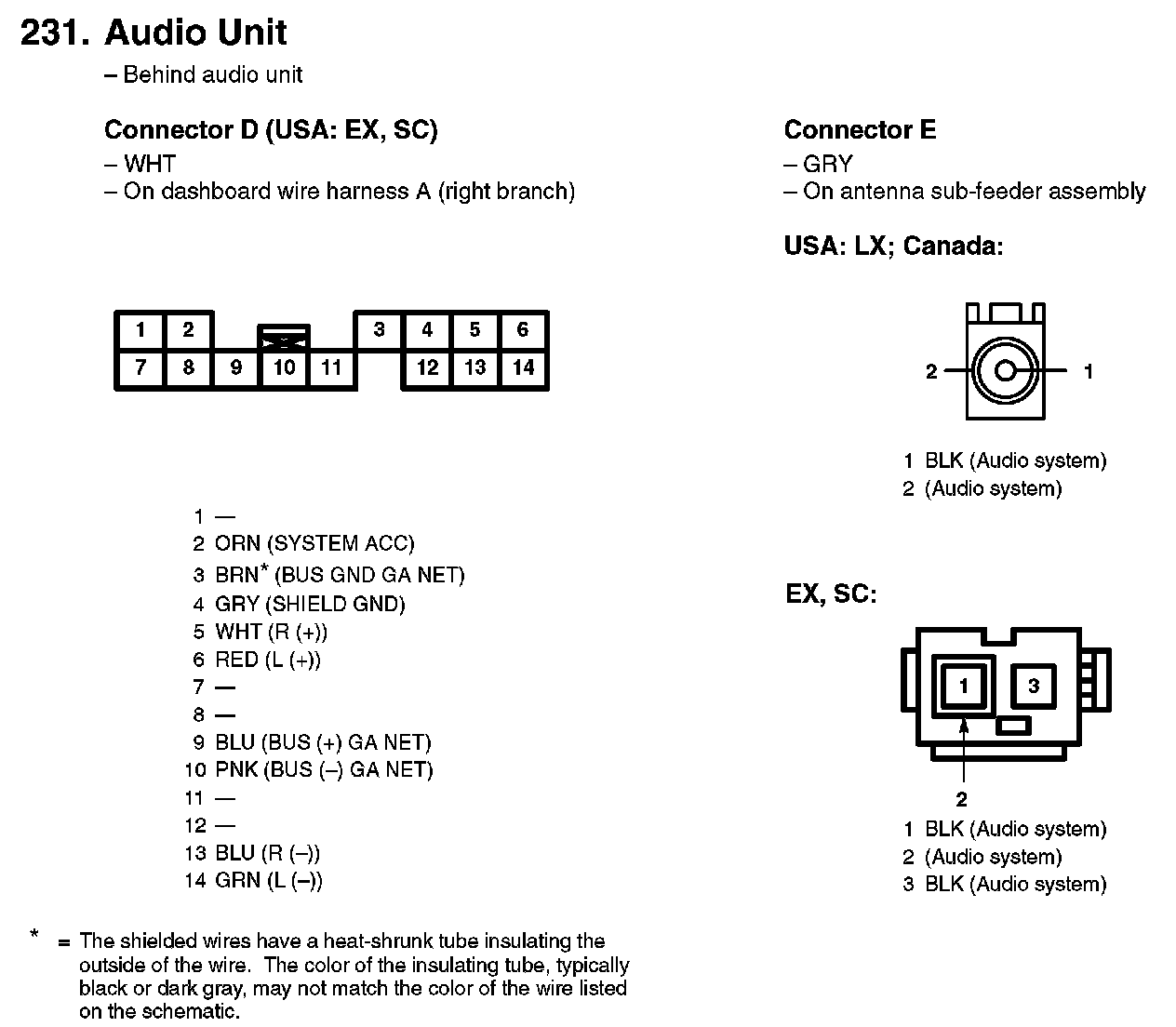

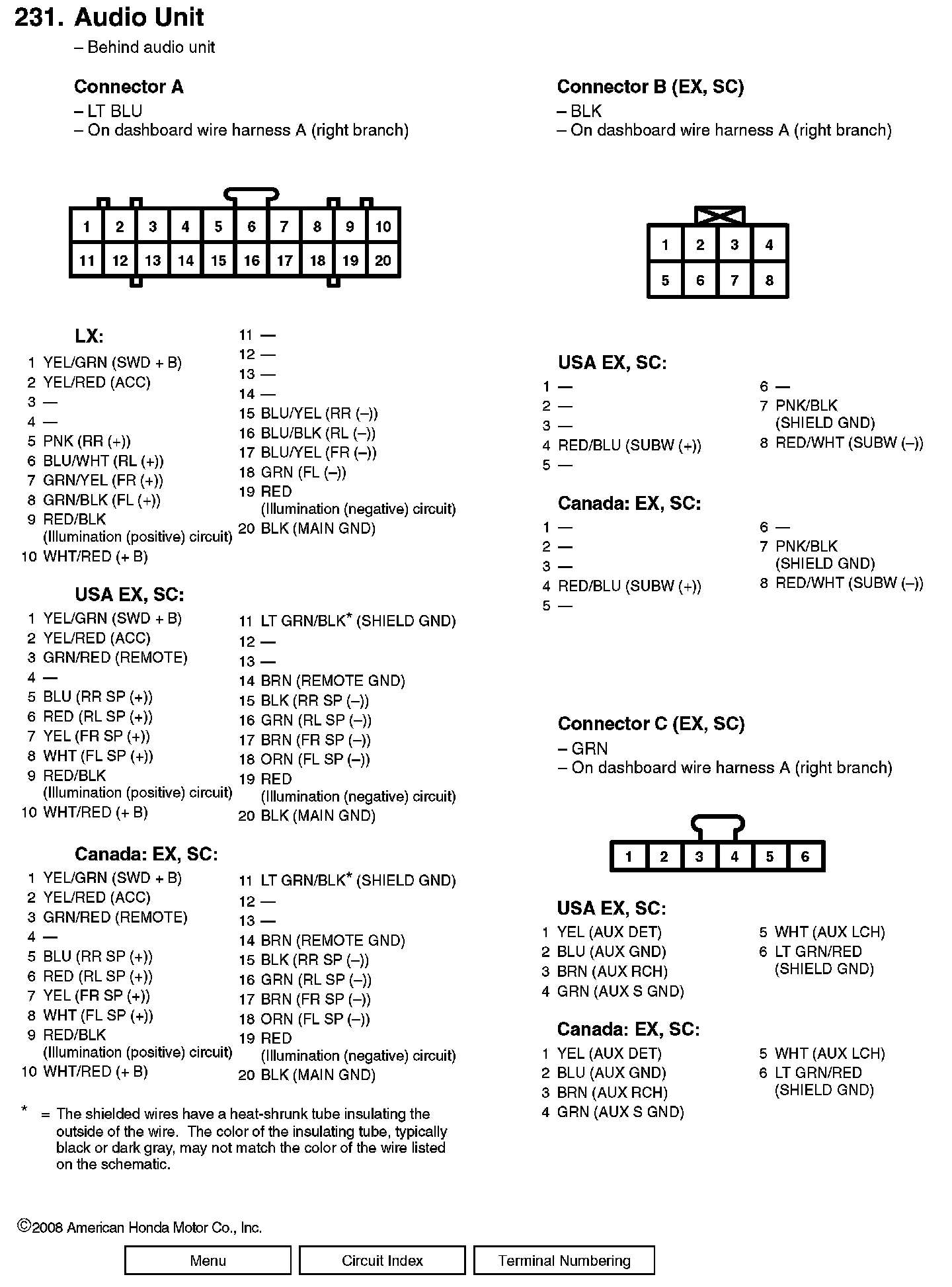

231. Audio Unit:
231. Audio Unit:
