Home >> Honda Truck >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126-150 >> 129

View 126-150: 129

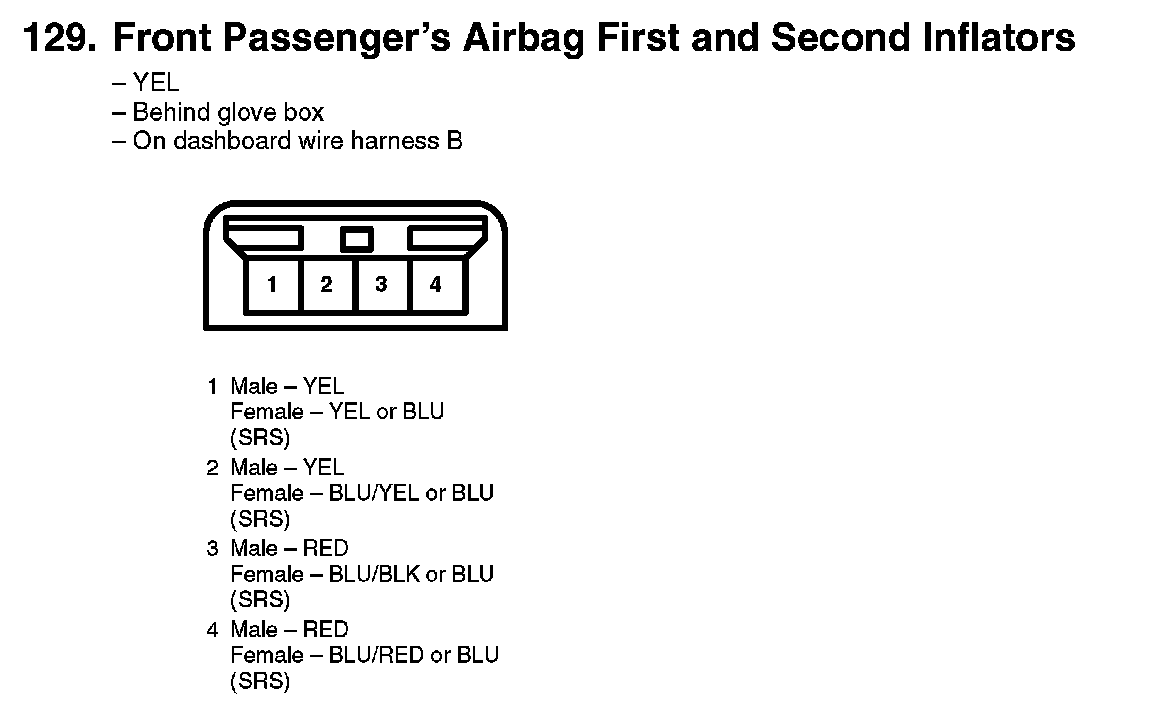

129. Front Passenger's Airbag First And Second Inflators:
