Glass Latch Replacement

Glass Latch Replacement

1. Remove the skylight.
2. To prevent damage to the skylight, place it on a work area with a protective covering.

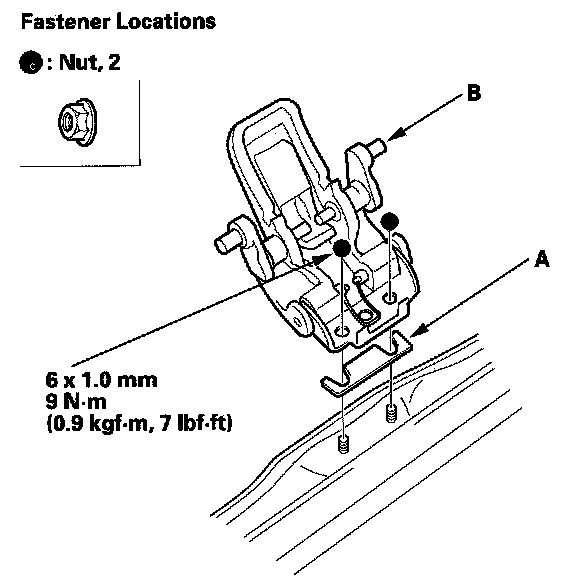

3. Remove the nuts and shim (A), then remove the glass latch (B).




4. Install the latch in the reverse order of removal, and note these items:

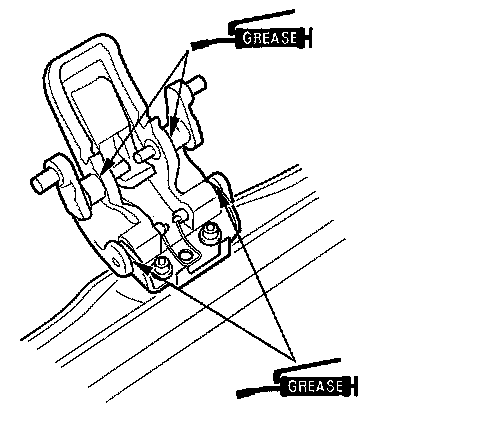

- Apply multipurpose grease to the handle pivot portions and latch arm moving portion as indicated by the arrows.
- Check the glass latch operation.
- Check for water leaks.
