Overhaul
Front Bumper Disassembly/ReassemblySC Model
NOTE:
- Take care not to scratch the front bumper faces.
- Put on gloves to protect your hands.
1. Remove the front bumper.

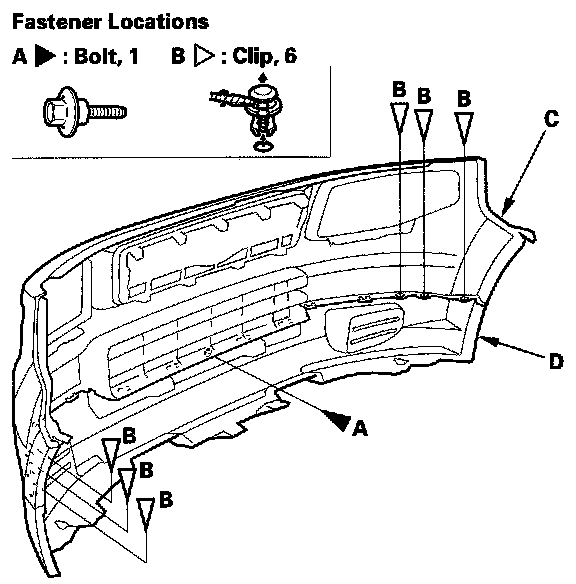

2. Remove the bolt (A) and clips (B) securing the front bumper upper face (C) and the front bumper lower face (D).

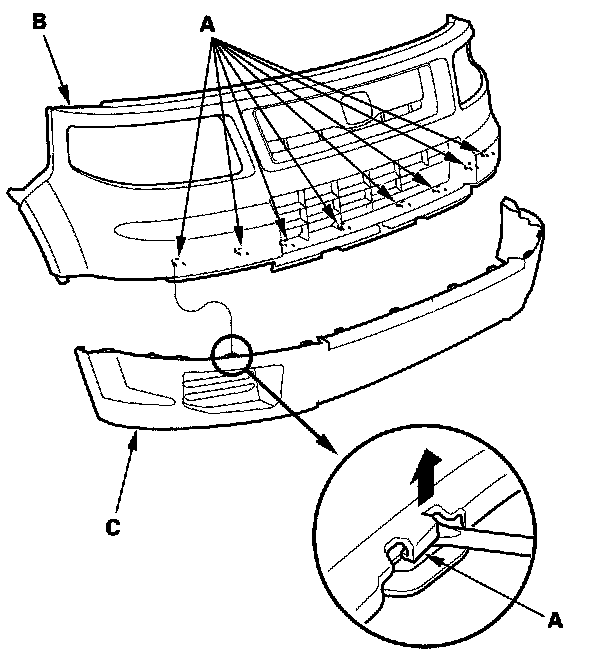

3. With the help of an assistant, detach the hooks (A) and separate the front bumper upper face (B) from the front bumper lower face (C).
4. Reassemble the bumper faces in the reverse order of removal, and note these items:
- Push the clips and hooks into place securely.
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
