Speaker: Service and Repair

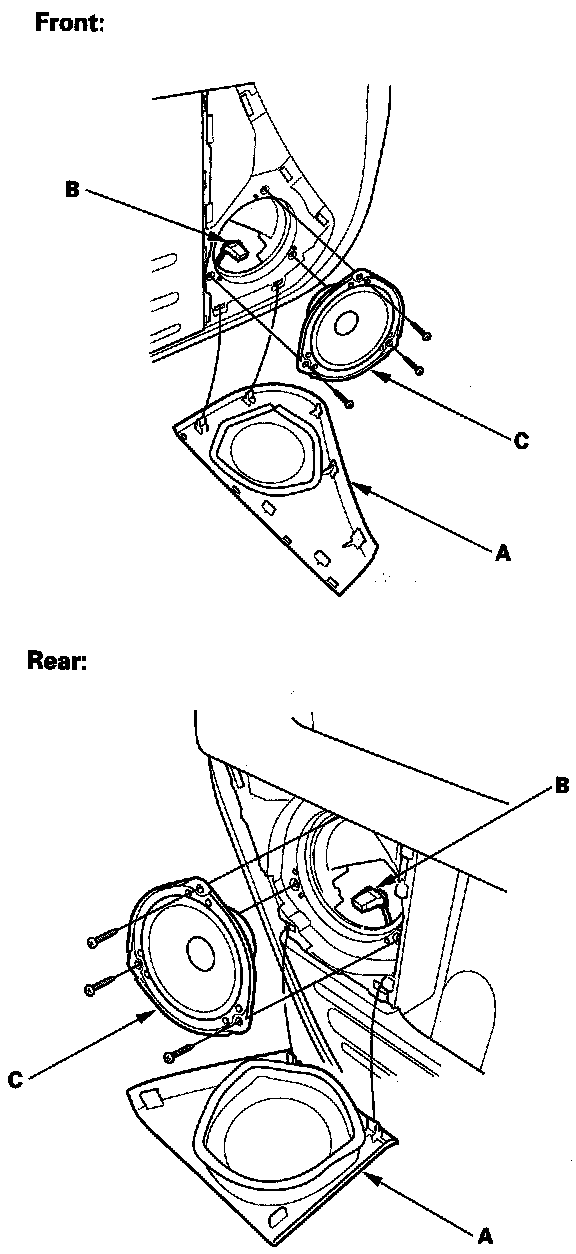

Speaker ReplacementDoor Speaker
1. Remove the speaker cover (A).
2. Remove the three screws, then disconnect the 2P connector (B) from the speaker (C).
3. Install in the reverse order of removal.

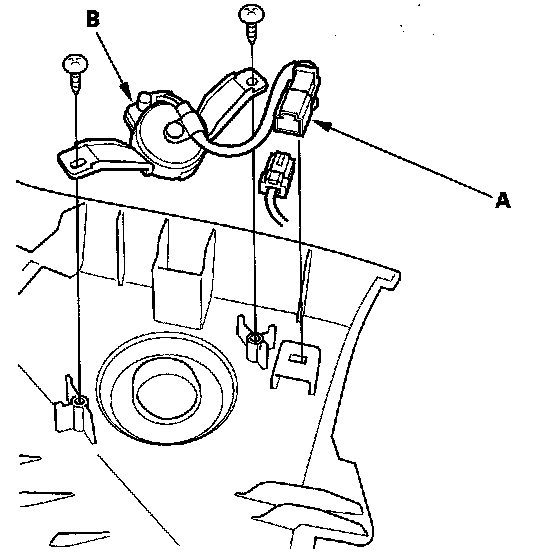

Tweeter
1. Remove the A-pillar trim.
2. Disconnect the 2P connector (A).
3. Remove the two mounting screws from the tweeter (B).
4. Install in the reverse order of removal.

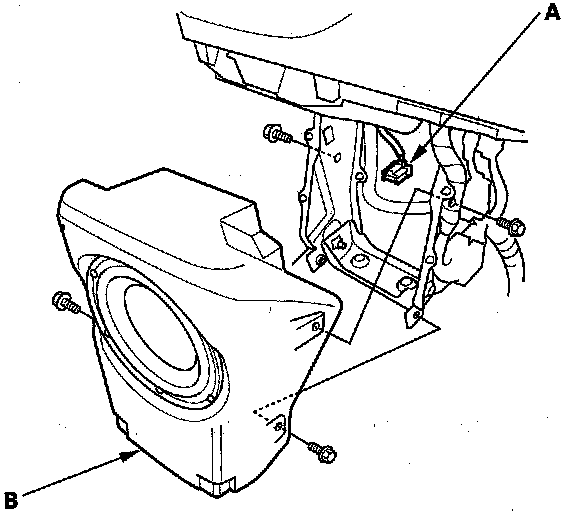

Subwoofer
1. SC model: Remove the center console.
2. Remove the dashboard center lower cover.
3. Disconnect the 4P connector (A) from the subwoofer (B).
4. Remove the four mounting bolts from the subwoofer.
5. Install in the reverse order of removal.
