Intermediate Shaft Disassembly

Intermediate Shaft Disassembly

Special Tools Required
^ Oil seal driver 07947-SB00100
^ Half shaft base 07NAF-SR30101

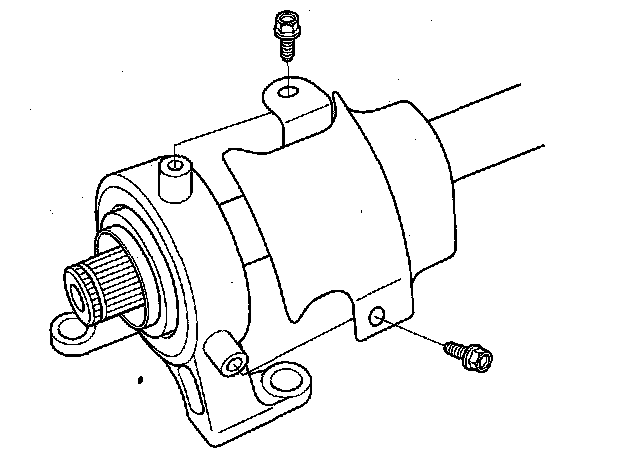

1. Remove the heat shield.

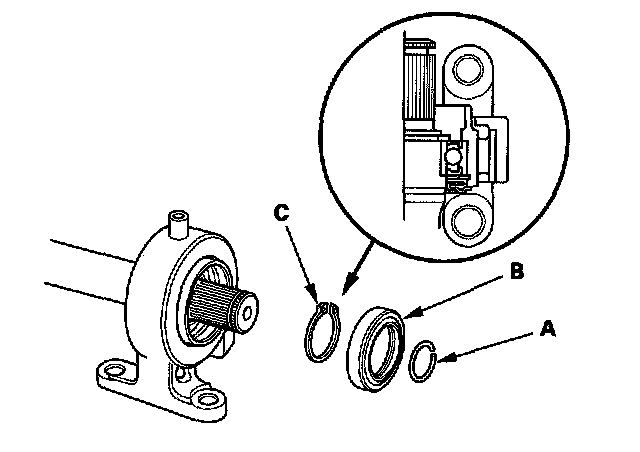

2. Remove the set ring (A), outer seal (B), and external snap ring (C).

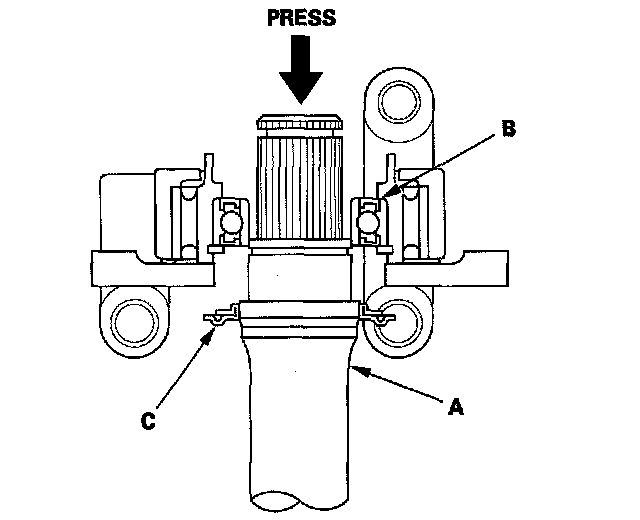

3. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using a press. Be careful not to damage the bearing support ring (C) on the intermediate shaft during disassembly.

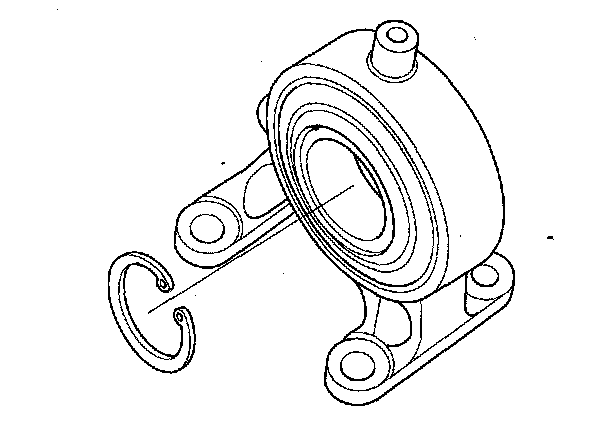

4. Remove the internal snap ring.

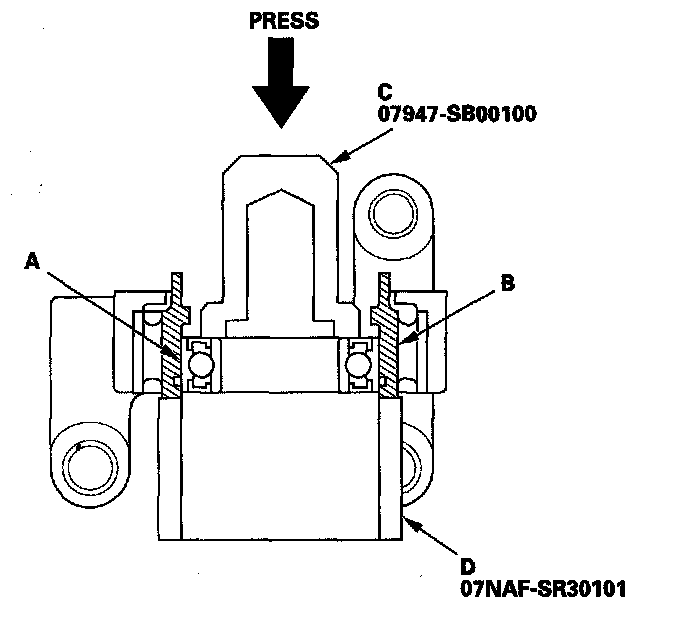

5. Press the intermediate shaft bearing (A) out of the bearing support (B) using the oil seal driver (C), half shaft base (D), and a press.
