Differential Housing Assembly Removal and Installation

Differential Housing Assembly Removal and Installation

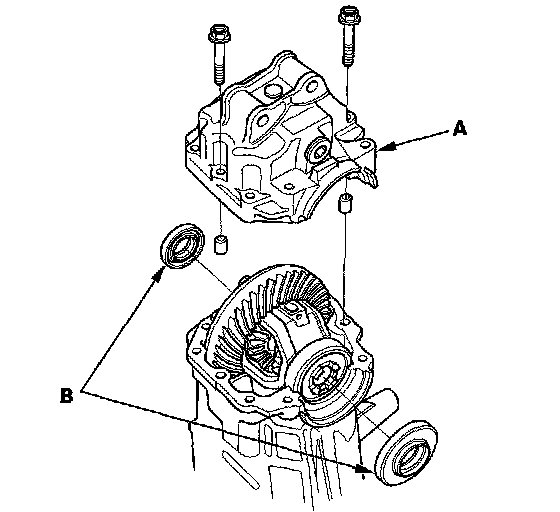

1. Remove the six mounting bolts in a crisscross pattern in several steps, then remove the differential housing assembly (A) and the oil seals (B).

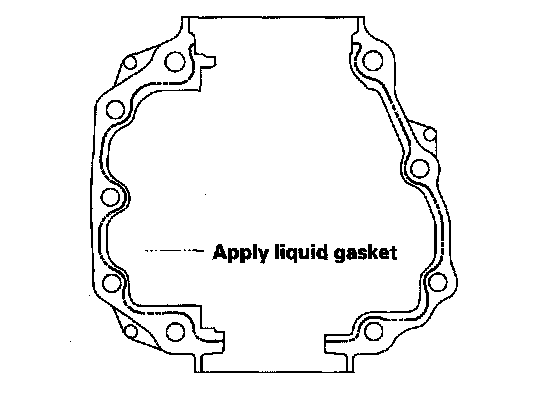

2. Remove the dirt and oil from the sealing surfaces. Apply liquid gasket (P/N 08718-0001) to the sealing surface. Make sure you seal the entire circumference of the bolt holes to prevent oil leakage.

NOTE:
^ You must assemble the housings within 5 minutes after applying the liquid gasket. If not, the sealing surface must be cleaned, and the liquid gasket reapplied.
^ Allow it to cure at least 30 minutes after assembly before filling the differential with fluid.

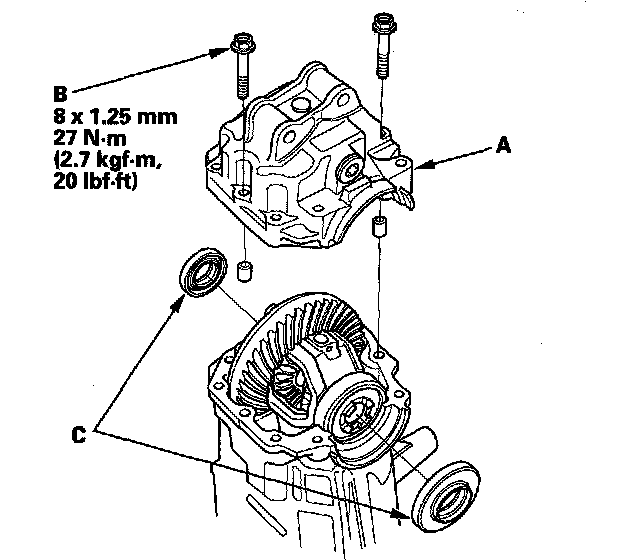

3. Install the differential housing assembly (A), then torque the six mounting bolts (B) in a crisscross pattern in several steps.





4. Install the oil seals (C).
