Washers/Wipers - Rear Washer Nozzle Missing/Broken

08-034

June 13, 2008

*Applies To:
See VEHICLES AFFECTED*

2007-08 CR-V: Rear Window Washer Nozzle Is Missing or Broken (Supersedes 08-034, dated May 16, 2008, to update the information marked by the black bars and asterisks)

SYMPTOM

The rear window washer nozzle is missing or broken, and washer fluid leaks into the vehicle's interior.

PROBABLE CAUSE

The rear washer nozzle was damaged by an ice scraper.

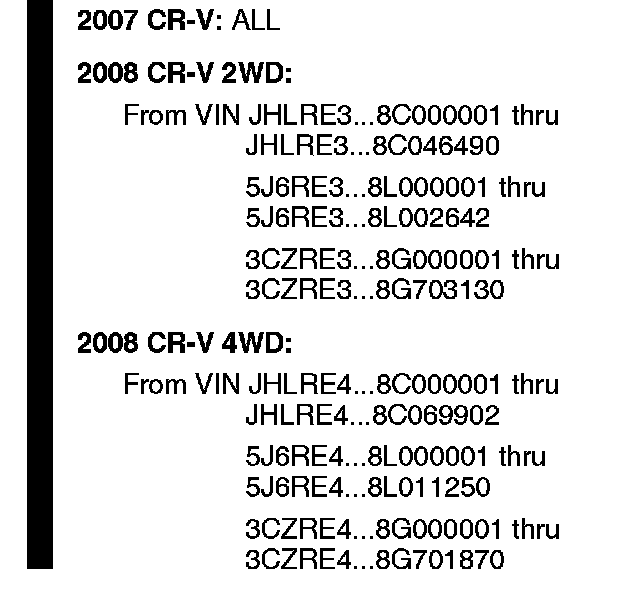

VEHICLES AFFECTED

CORRECTIVE ACTION

Install the updated rear washer nozzle kit.

PARTS INFORMATION

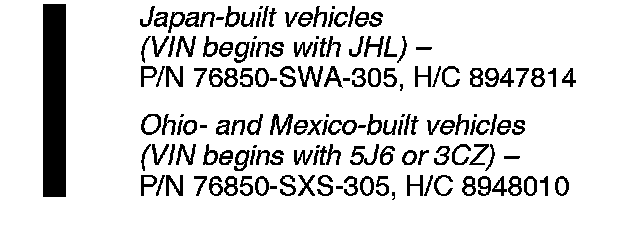

Rear Washer Nozzle Kit:

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 7421A7

Flat Rate Time: 0.2 hour

*Failed Part: VIN begins with JHL:
P/N 76850-SWA-003
H/C 8518573
VIN begins with 5J6 or 30Z:
P/N 76850-SXS-A01
H/C 8473266*

Defect Code: 01801

Symptom Code: 05909

Template ID: 08-034A (Japan-built)
08-034B (Ohio- and Mexico-built)

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Remove the tailgate upper trim panel:

^ Refer to page 20-78 of the 2007-2008 OH-V Service Manual, or

^ Online, enter keywords TRIM REM TAIL, and select Interior Trim Removal/Installation-Tailgate-Area from the list.

2. Pull the washer hose off the the rear nozzle, and remove the nozzle and the nut.

3. Install the new nozzle with a new nut onto the glass.

4. Reattach the washer hose to the nozzle.

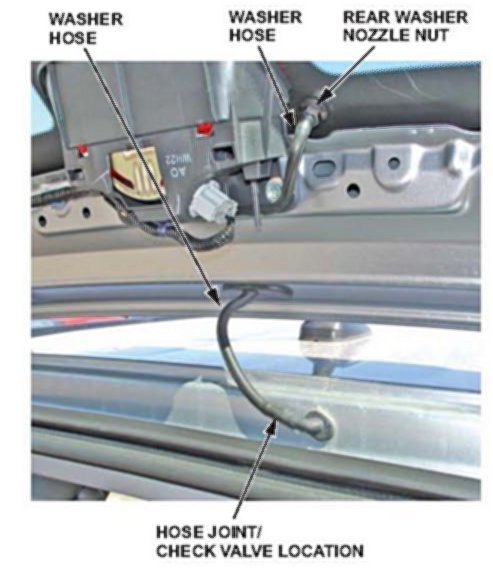

5. Disconnect the washer hose between the body and the tailgate, then remove the hose joint.

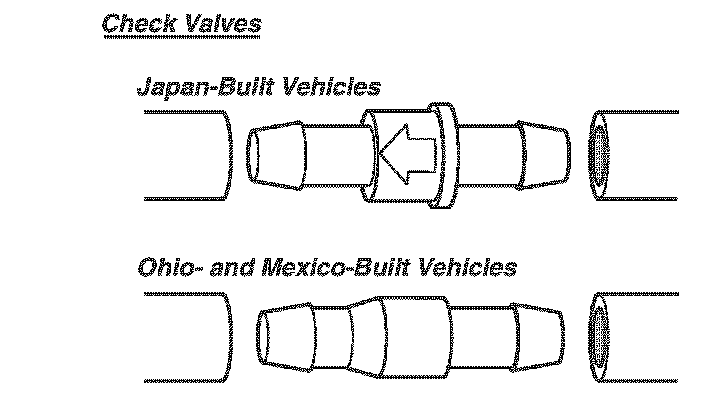

6. Install a new check valve joint with the arrow or the taper pointing towards the nozzle.

7. Reinstall all removed parts.

8. Test the rear washer for proper operation. If the spray area is not within the standard position, adjust the nozzle:

^ Refer to page 22-223 of the service manual, or

^ Online, enter keywords NOZ ADJ, and select Wiper Arm/Washer Nozzle Adjustment from the list.
