Audio System - Buzzing From Front Door Speakers

07-047

August 3, 2007

Applies To:
2007 CR-V - From VIN JHLRE3...7C000001 thru JHLRE3...7C024413
- From VIN JHLRE4...7C000001 thru JHLRE4...7C038420

Buzzing From Front Door Speakers

SYMPTOM

The front door speakers buzz when playing the audio system at high volume.

PROBABLE CAUSE

The front edge of the door panel vibrates against the door.

CORRECTIVE ACTION

Apply felt to the door panel.

REQUIRED MATERIALS

Wool Felt: P/N 06993-SA5-000, H/C 2086676
(One roll repairs about 50 vehicles.)

TOOL INFORMATION

Diagnostic CD: T/N 07AAZ-SDBA100

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Operation Number: 843009

Flat Rate Time: 0.5 hour

Failed Part: P/N 83551-SWA-A01ZA
H/C 8432254

Defect Code: 07404

Symptom Code: 04201

Template ID: 07-047A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

DIAGNOSIS

Play the diagnostic CD, tracks 14 thru 53, to re-create the noise complaint. When you hear the buzz, apply pressure to the front edge of the front door panel with your hand.

^ If the noise goes away, go to REPAIR PROCEDURE.

^ If the noise does not go away, disregard this service bulletin and continue with your normal diagnosis.

REPAIR PROCEDURE

1. Remove the front door panel:

^ Refer to page 20-6 of the 2007 CR-V Service Manual, or

^ Online, enter keyword FRONT DOOR, and select Front Door Panel Removal/Installation (Enhanced) from the list.

2. Cut four 100 x 50 mm pieces of wool felt, one 25 x 15 mm piece, and one 50 x 15 mm piece.

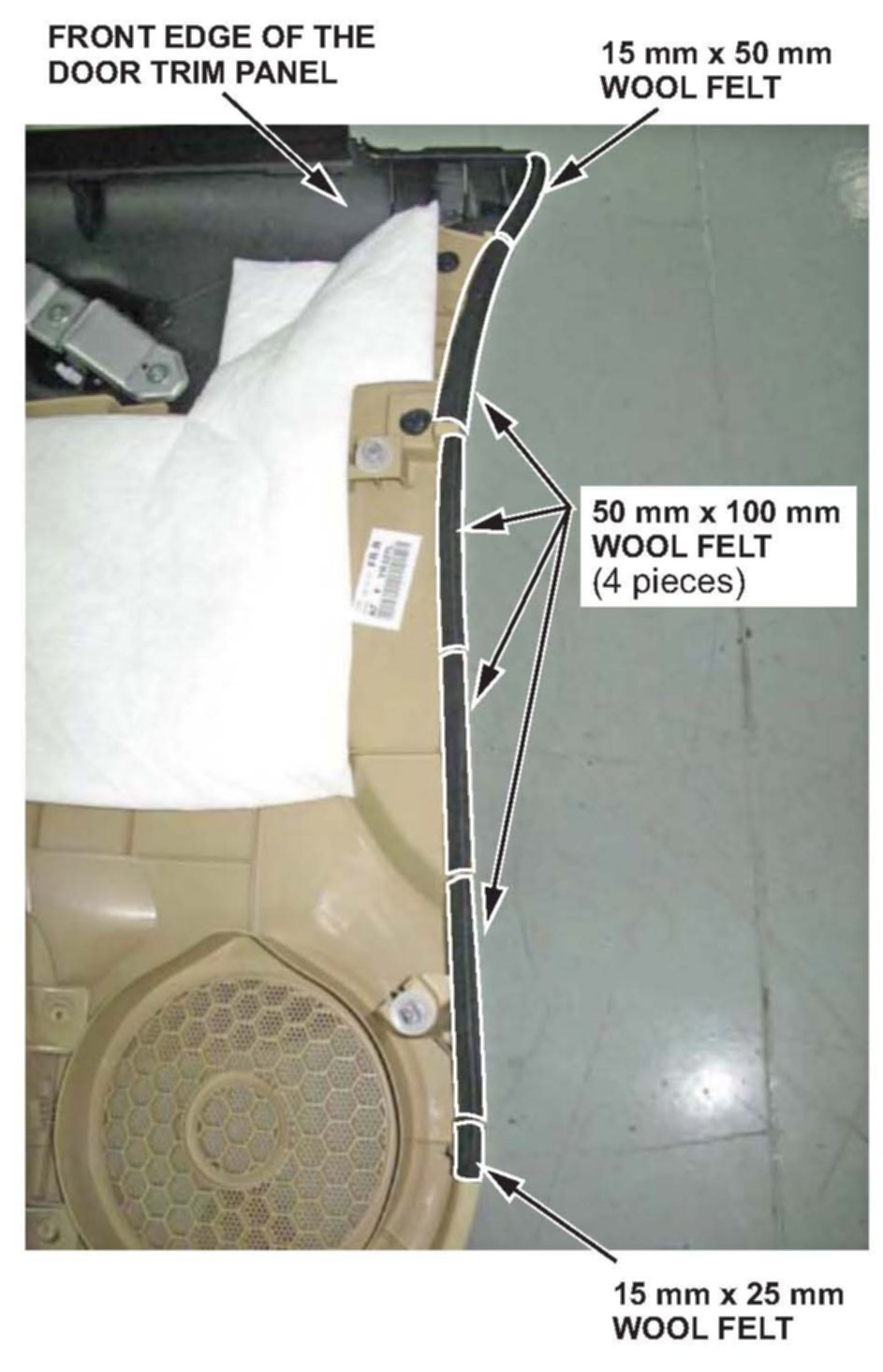

3. Attach all six pieces of wool felt to the front edge of the door panel as shown.

4. Install the door panel:

^ Refer to page 20-8 of the service manual, or

^ Online, enter keyword FRONT DOOR, and select Front Door Panel Removal/Installation (Enhanced) from the list.

5. Repeat steps 1 thru 4 for the other front door.

6. Make sure the noise is gone by playing the diagnostic CD (tracks 14 thru 53).
