Center Mounted Brake Lamp: Service and Repair

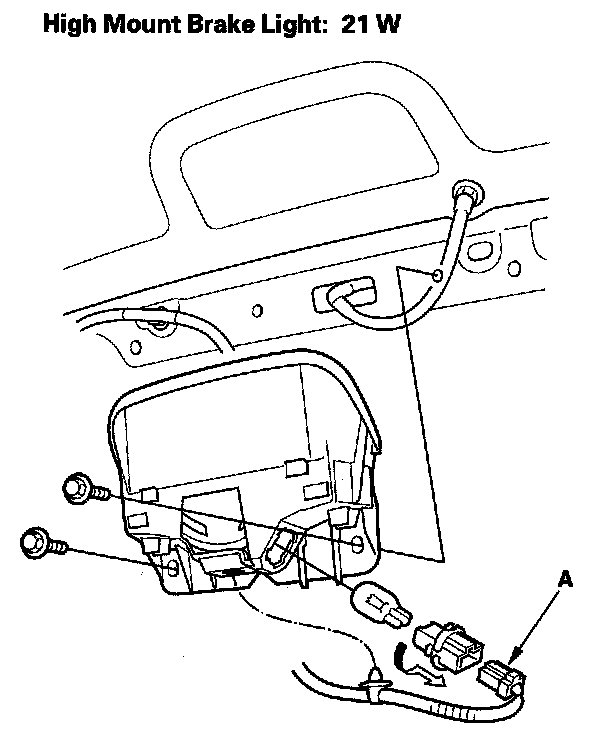

High Mount Brake Light Replacement

1. Open the tailgate, and remove the tailgate upper trim panel.




2. Disconnect the 2P connector (A) from the high mount brake light.
3. Turn the bulb socket 45° counterclockwise to remove the bulb.
4. Remove the two bolts, then remove the housing.
5. Install the light in the reverse order of removal.
